QSH-090-01-L-D-A, Samtec QSH Series Straight Surface Mount PCB Socket, 180-Contact, 2-Row, 0.5mm Pitch, Solder Termination

QSH Series High Speed Ground Plane Socket

These Board to Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets have 0.25 μm Gold plated contacts and Ground Plane with Matte Tin plated Tails. This range of Board- to-Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets have 3.5 mm body heights which gives a stack height of 5 mm when mated with the corresponding QTH Series Headers. The design of this range of Board to Board QSH Series SMT 0.5 mm pitch High Speed Ground Plane Sockets includes Alignment Pins.

Note

For mating QTH Series Headers see stock number 767-8745 typical.

0.5mm Pitch -Samtec

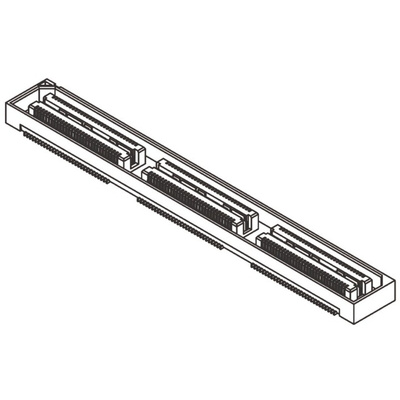

QSH Series High Speed Ground Plane Socket Customer Drawing
