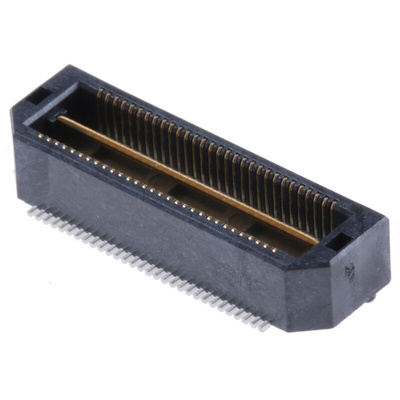

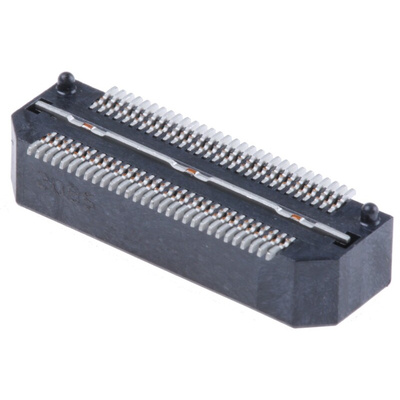

QTH-030-01-L-D-A, Samtec QTH Series Straight Surface Mount PCB Header, 60 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded

Samtec PCB Header, Liquid Crystal Polymer Shrouding, Gold-Plated Contacts - QTH Series - QTH-030-01-L-D-A

Pick this PCB header from Samtec and consolidate your electronics. Its 60-way configuration across two rows lets you make multiple power or data connections via a single block. This facilitates all kinds of board-to-board functions, making it a great shout for connecting to single-board systems like Arduino and Raspberry Pi computers. As this model is shrouded with liquid crystal polymer insulation, you can trust it to be a physically robust and electrically sound component that poses no shock risk.

Features & Benefits

• High-quality power and signal transfer thanks to gold-plated phosphor bronze contacts
• Straight body orientation for a seamless fit onto your board
• Safely connects linked kit to the ground in applications up to 25A and 125V AC
• Works from -55°C to +125°C to stand up to challenging environments

Applications

• Telecommunication networking
• Process and control
• Aerospace engineering
• Industrial lighting

What are the benefits of this header's differential pair routing?

As this header is routed using signal-boosting differential pairs, it's handy for high-speed PCB designs. This wiring configuration also helps minimise the impact of common mode noise and other forms of EMI for stable performance.

0.5mm Pitch -Samtec

Datasheet
