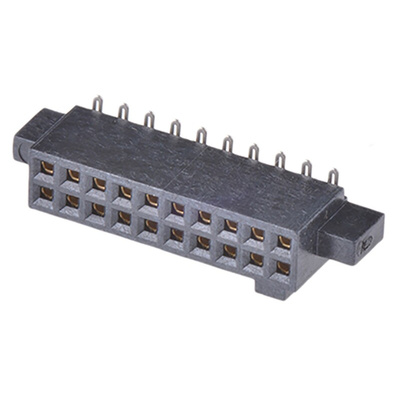

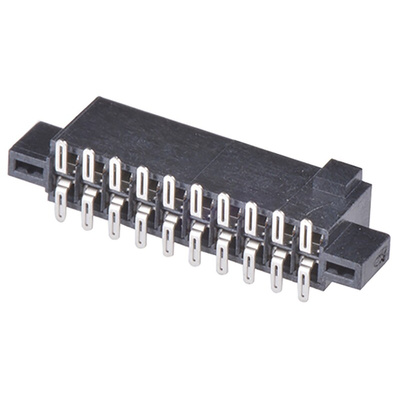

SFM-110-02-L-D, Samtec SFM Series Straight Surface Mount PCB Socket, 20-Contact, 2-Row, 1.27mm Pitch, Solder Termination

Samtec SFM Tiger Eye Series 1.27mm SMT PCB Board-to-Board Sockets

SFM Series 1.27mm dual row SMT PCB board-to-board socket strip connectors with rugged and reliable gold plated Tiger Eye contacts that have a multi-finger design for redundant points of contact. These SFM Tiger Eye series 1.27mm board-to-board SMT sockets have a body height of 4.7 mm and mate with the following:
TFM Series headers see stock number 481-4667 typically
FTS Series micro terminal strips see stock number 481-4702 typically
FTSH Series micro headers see stock number 767-6774 typically

Note

SFM-1xx-xx-S-D-A have 0.75 μm gold plating and alignment pins
SFM-1xx-xx-L-D have 0.25 μm gold plating

SFM Series Socket Strip SMT Footprint Drawing

SFM Series Socket Strip Customer Drawing

SFM Series Socket Strip Catalogue Page

Tiger Eye Socket
