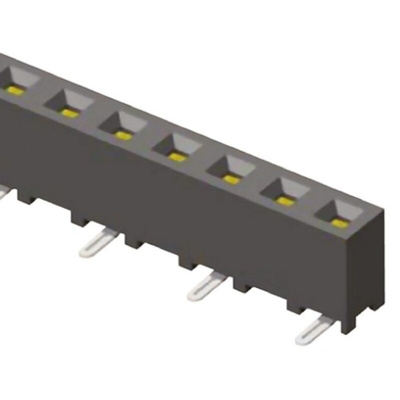

SMM-110-02-S-S, Samtec SMM Series Straight Surface Mount PCB Socket, 10-Contact, 1-Row, 2mm Pitch, Solder Termination

SMM Series Tiger Eye Socket Strip

These SMM Series of 2 mm pitch Board to Board SMT Socket Strips from Samtec feature Tiger Eye Contacts with 0.76 μm Gold plating on the contact area and matte Tin plating on the PCB Tails. This range of SMM Series, 2 mm pitch Board-to-Board SMT Socket Strips are available in single and dual row design with a 2 mm pitch between rows.

Insulator Material: Black LCP
Temperature Range: -55 → 125 °C

Note

For Mating TMM SMT Headers see stock number 481-4780 typical.
For Mating TMM Through Hole Headers see stock number 765-6212 typical.

SMM Series Tiger Eye Socket Strip Footprint Drawing

SMM Series Tiger Eye Socket Strip Customer Drawing

SMM Series Tiger Eye Socket Strip Catalogue Page
