SOLC-110-02-S-Q, Samtec SOLC Series Straight Surface Mount PCB Socket, 40-Contact, 4-Row, 0.635mm Pitch, Solder Termination

Quad Row SMT Sockets - SOLC Series

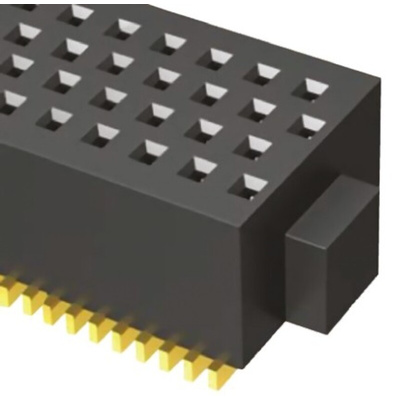

The SOLC Series of FourRay SMT high density Sockets from samtec are a staggered quad row design. Contact and row pitch is 1.27 mm with a 0.635 mm offset in the contacts from row to row. This range of SOLC Series high density Sockets have 0.75 μm Gold plating on the contacts and 0.075 μm Gold plating on the tails. The above board height of these SOLC Series high density Sockets is 4.06 mm, with a mated height of 6.35 mm when using the corresponding TOLC high density terminal strips.

Note

For mating TOLC high density terminal strips see stock number 765-6354 typical.

SOLC Series Quad Row SMT Socket Footprint Drawing

SOLC Series Quad Row SMT Socket Customer Drawing

SOLC Series Quad Row SMT Socket Catalogue Page
