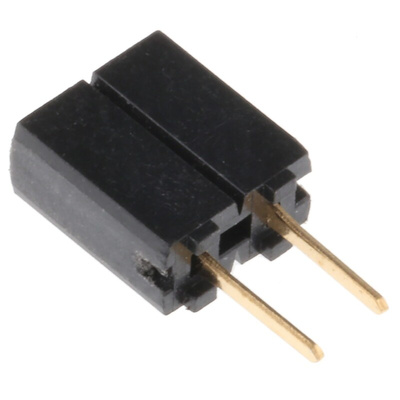

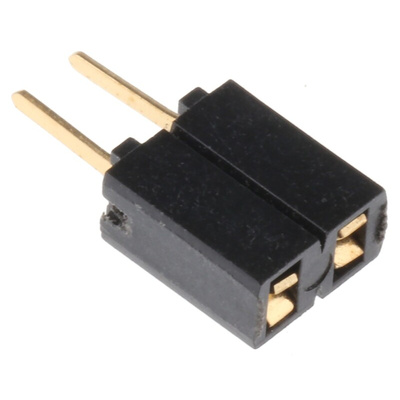

SSA-102-S-G, Samtec SSA Series Straight Through Hole Mount PCB Socket, 2-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 1A Current Rating, 1000V Voltage Rating - SSA Series - SSA-102-S-G

If you want to create fuss-free board-to-board connections, grab this PCB socket from Samtec. Simply insert or remove a compatible pin header (766-6442) to make or break links between circuit cards in a jiffy. Thanks to its highly conductive bronze contacts, signals get from A to B in a flash. It works without a hitch in extreme environments, thanks to its wide operating temperature range between -55°C and +125°C. Its voltage rating of 1000V means the component meets the demands of heavy-duty applications head-on.

Features & Benefits

• Self-extinguishing material helps to prevent the spread of flames for improved fire safety
• Standard pitch of 2.54mm for wide compatibility with many PCB headers

Applications

• Telecommunications networks
• Computer setups
• Industrial control panels
• Medical devices
• Consumer electronics

How does a PCB socket and plug streamline my board-to-board setup?

Connecting your PCBs with these components saves you the time and effort of running wires across boards. It also makes cable management neater.

How do I mount this PCB socket on my board?

Thanks to the through-hole mounting design, you just punch the pins through the PCB's holes and solder them in place.
