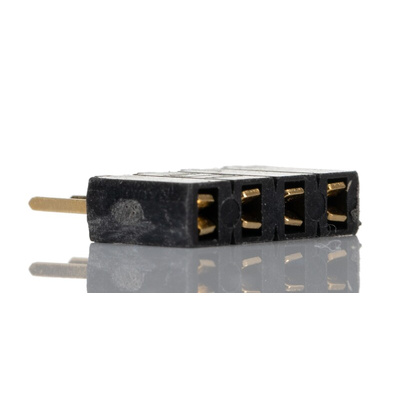

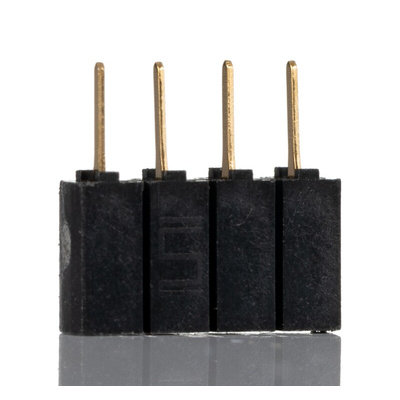

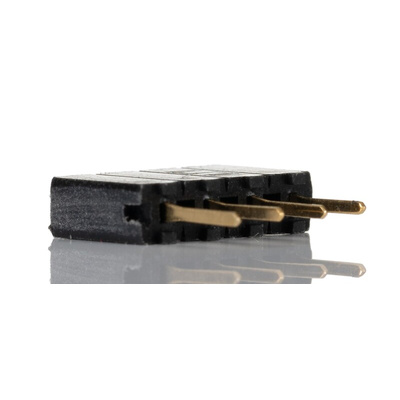

SSA-104-S-G, Samtec SSA Series Straight Through Hole Mount PCB Socket, 4-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, With Standoffs, 1A Current Rating - SSA Series - SSA-104-S-G

Click your board-mounted devices together in a snap with this PCB socket from Samtec. As it links with a header (765-6388) using a simple plug-in method, it removes the need for special tools, so you can ease through system-building. Thanks to its highly conductive and corrosion-resistant gold-plated bronze contacts, the connector forms steady electrical connections to keep processes running smoothly. Finding components to fit the unit is no issue, thanks to its industry-standard 2.54mm pitch. The socket's handy standoffs mean it provides easy access to your board's surface for hassle-free cleaning.

Features & Benefits

• Simple through-hole mounting method for quick and secure installation
• Withstands surge voltages up to 1000V to cut the risk of equipment damage from power faults
• Four contacts let you make up to four connections
• PET body provides effective insulation, minimising exposure to hazardous loads
• Single-row pin layout to slot into tight spaces

Applications

• Material handling
• Signalling systems
• Server management

What's the difference between surface and through-hole mounting?

Surface mounting directly fixes a component to a board's top layer, providing speedy installation. Through-hole mounting means the unit slots through pre-drilled holes and solders to pads on a board's reverse side, holding your device steady against movement.
