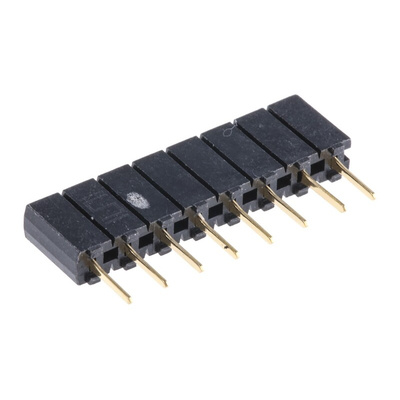

SSA-108-S-G, Samtec SSA Series Straight Through Hole Mount PCB Socket, 8-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Low Cost 2.54mm Socket Strips - SSA Series

SSA series board to board through hole single row socket strips with a 2.54mm pitch, snap strip feature and standoffs. The body of these SSA series board-to-board PCB sockets is made UL rated 94 V-O high temperature black PET polyester and the double side-swipe contacts are made from phosphor bronze with a 0.25μm gold plating. The temperature range at which these board to board socket strips can be used is -55 to +125°C.

Note

These SSA series board to board through hole single row socket strips will mate with the following:
TS series screw machine terminal strip - stock number 765-6376 typically.
BBS machine board stacking strips - stock number 766-6442 typically.
BBL machine board stacking strips - stock number 766-6367 typically.

Samtec SSA Straight Through Hole Mount PCB Socket, 8-Contact, 2.54mm Pitch - SSA-108-S-G

This low cost socket strip designed for various interconnect applications. It falls under Samtec’s product categories of high speed (signal integrity), micro pitch, and rugged/power products. This versatile connector is commonly used in board-to-board, cable-to-board, and panel and I/O applications.

Features & Benefits

• 8 positions accommodates multiple signal lines or connections in a compact form factor
• Gold plating ensures reliable electrical performance and corrosion resistance
• Breakaway connector allows easy separation and customization as needed
• Through hole mounting facilitates secure and stable PCB attachment

Applications

• Board-to-Board Connections
• Cable-to-Board Interfaces
• Panel and I/O Systems

What plating material does SSA-108-S-G use?

SSA-108-S-G features gold plating for optimal performance and durability
