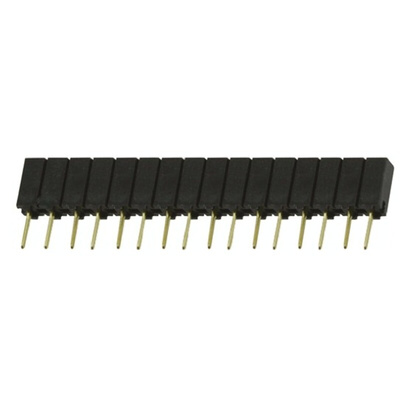

SSA-116-S-G, Samtec SSA Series Straight Through Hole Mount PCB Socket, 16-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Low Cost 2.54mm Socket Strips - SSA Series

SSA series board to board through hole single row socket strips with a 2.54mm pitch, snap strip feature and standoffs. The body of these SSA series board-to-board PCB sockets is made UL rated 94 V-O high temperature black PET polyester and the double side-swipe contacts are made from phosphor bronze with a 0.25μm gold plating. The temperature range at which these board to board socket strips can be used is -55 to +125°C.

Note

These SSA series board to board through hole single row socket strips will mate with the following:
TS series screw machine terminal strip - stock number 765-6376 typically.
BBS machine board stacking strips - stock number 766-6442 typically.
BBL machine board stacking strips - stock number 766-6367 typically.

Samtec PCB Socket, PET Polyester Insulation, 1.39N Average Withdrawal Force - SSA Series - SSA-116-S-G

Need a trusty go-between to connect wires to your circuit board? Reach for this single-row PCB socket from Samtec. Its 16 contacts are made of highly conductive phosphor bronze to ensure you have a reliable link. The component's PET polyester insulation puts safety first, as it protects you from electrical hazards during handling and operation. A pitch of 2.54mm provides enough spacing to prevent the unit's pins from touching each other, reducing the risk of short circuits. Thanks to through-hole mounting, you can count on a secure, vibration-proof union with your board.

Features & Benefits

• Current rating of 1A makes it the right choice for light-duty setups
• Handles between -55°C and +125°C of operating temperature without flinching, suiting demanding conditions
• Gold plating on the contacts resists corrosion, ensuring long-term performance
• Dielectric strength of 1kV to withstand sudden voltage spikes

Applications

• CNC machines
• Process and packaging equipment
• HVAC systems

Is this PCB socket flame-resistant?

Yes, it stops burning within 10 seconds in the event of a fire, limiting the spread of flames.

How do I hook up this PCB socket?

It uses the solder termination method for a solid link and dependable connection.
