RS PRO Bright Zinc Plated, M5 Steel Threaded Insert, 13.49mm diameter 10.16mm Depth 18.19mm, Вставки

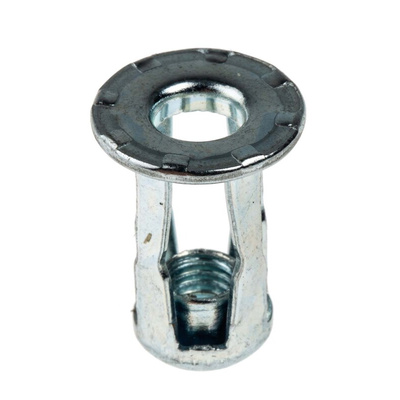

RS PRO Plain, M5 Steel Threaded Insert, 13.49 mm Diameter 10.16 mm Depth 18.19 mm

For an easy way to create threaded holes in any sheet materials, try this RS PRO threaded insert. They’re designed for creating holes for bolts, screws and other fixtures.

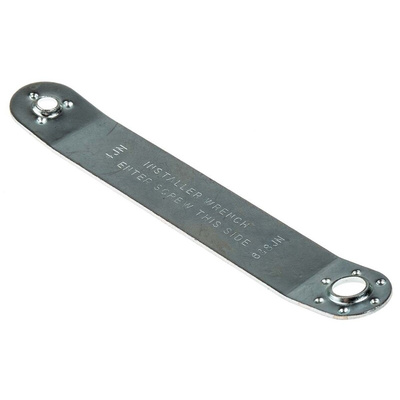

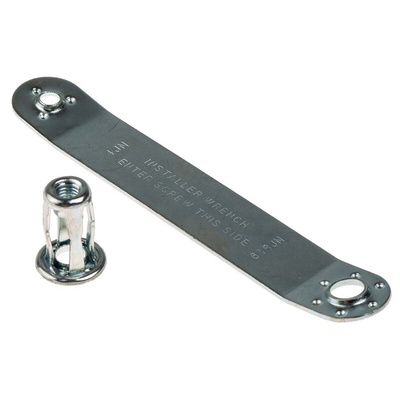

As the insert is self-adjusting, you’ll feel the insert pressing firmly against the sheet when it’s fine to stop tightening the screw. Just place the insert and screw into any hole of the accompanying friction wrench. Use these threaded inserts with a range of material thickness from 0.38 mm to 4.75 mm. Just push through pre-drilled holes, and tighten the screw by using the friction wrench until it's flush against the sheet.

Their zinc-plated mild-steel construction gives these threaded inserts reliable resistance to corrosion and rust. These components are most often used in automotive and industrial applications to improve the strength of thin sheets of materials like plasterboards or plastic and steel or aluminium sheets.

Features and Benefits

• Threaded hollow cavity inserts
• M5 threading
• Suitable for material thickness range of 0.38 mm to 4.75 mm
• Fixing hole diameter of 10.16 mm
• Flange diameter of 13.49 mm
• Outer body diameter of 9.7 mm
• Body depth of 18.19 mm
• Bright zinc-plated mild steel construction for corrosion resistance

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
