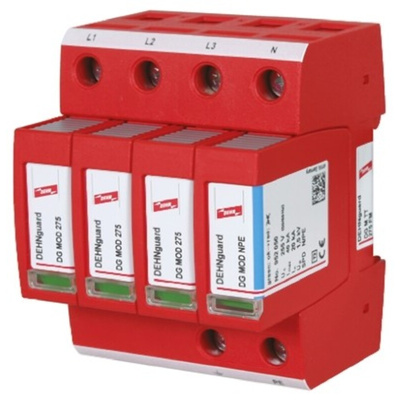

DG M TT 275 FM, Dehn, DG 275 V ac Maximum Voltage Rating 40kA Maximum Surge Current Type 2 Arrester, DIN Rail

7681748
Номер производителя: DG M TT 275 FMПроизводитель: Dehn
Цена за шт.
107877.00 руб. (С НДС) *
Количество 2+ 5+
Цена 103563.00 руб. 98169.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DEHNguard Modular Surge Arresters Type 2

DEHNguard Modular Type 2 surge arrestors, supplied as a prewired base with plug in modules

Energy coordinated with other Dehn Redline products in accordance with BS7671 amendment 1
High discharge capacity using heavy duty metal oxide varistors and spark gaps
Status indication using Thermo Dynamic Control for monitoring of the SPD
Tool less replacement of the plugs for repair and test functions

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Техническая спецификация
pdfDG M TNC 275 Installation Instructions
pdfDatasheet
Высота:
90мм
Глубина:
66мм
Длина:
72мм
Максимально допустимое напряжение:
275 В перем. тока
Максимальный ток перенапряжения:
40кА
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Размеры:
72 x 66 x 90мм
Серия:
DG
Тип монтажа:
DIN Rail
Тип супрессора:
Type 2 Arrester
