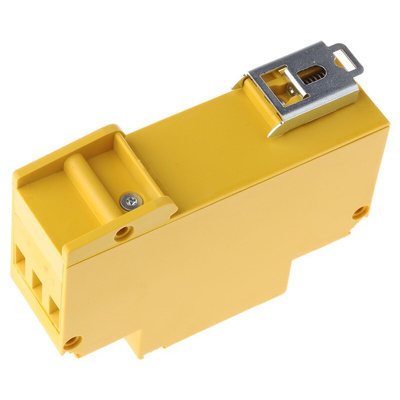

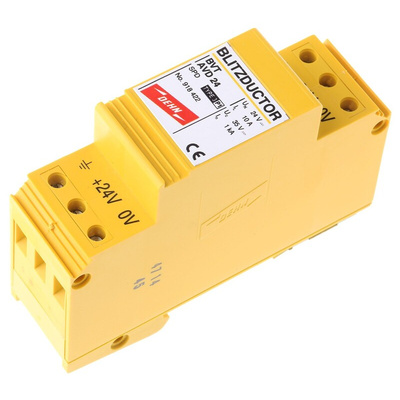

BVT AD 24, Dehn, BVT Surge Protector 35 V dc Maximum Voltage Rating 2kA Maximum Surge Current Lightning Arrester

DEHN Data Signal Surge Arresters

DEHN data signal surge arresters for industrial process control circuits, the protection of the low voltage power supply and the I/O of PLC applications using sensors and transducers.

Combined lightning current and surge arresters for signal and data lines with one base design common to all Yellow line plugs
Activsense technology automatically detects the signal voltage from 0 to 180v and adapts the voltage protection level for optimal performance
Integrated LifeCheck monitoring function ensuring highest availability and rapid detection of damaged arrestors
Power protection unit for PLC DC power supply systems in a slim DIN housing

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage spikes are usually caused by lightning strikes and can reach up to 6000V, with current surges of over 3000A. The maximum size of the let-through voltage and current inrush depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Blitzductor Power Supply Surge arrester

BVT AD 24 Installation Instructions

Selection Guide for Lightning Current and Surge Arresters Information Technology Systems
