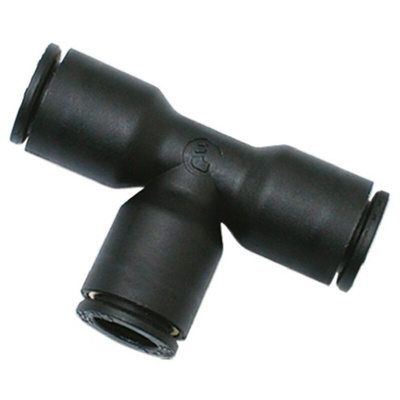

3104 12 04, Legris LF3000 Series Tee Tube-to-Tube Adaptor Push In 4 mm, Push In 12 mm to Push In 12 mm, Tube-to-Tube Connection, Переходник

Unequal Tee

These unequal tees can be used to adapt supply ports to a pilot port. They can be used with the piloted non return valve.

Connects at 90° angle
Push in connection

Metric Tube Fittings – Elbows & Tees

Ermeto Original or EO® progressive ring fittings, for metric tube, are manufactured from mild steel, with zinc plated and passivated finish. They are available in light duty and heavy duty series to cover a wide range of pressure ratings. Each fitting comes with a tube nut but the bite ring will need to be ordered separately. The progressive ring bite produces a keyed leak-free tube connection. The range of fittings is intended purely for the assembly of connections for fluid applications. All fittings are supplied with an instruction leaflet. For steel fittings it is recommended that seamless drawn steel tubes to DIN 2391/C are used. Operating temperature range without pressure reductions for the steel fitting materials is -40°C to +120°C.

Piloted Non Return Valve (PNRV) Data Sheet
