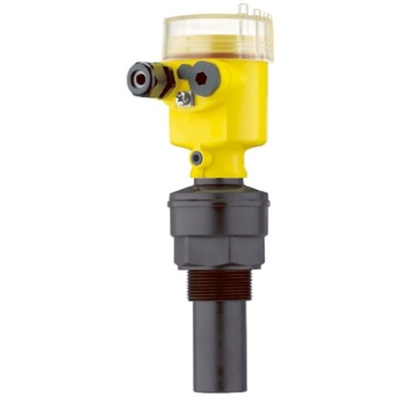

SONS61.EXXX, Vega VEGASON 61 Series Vibrating Rod Ultrasonic Level Sensor, Relay Output

Vega Ultrasonic Level Sensor

The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is up to 5m for liquid and 2m for bulk solid. The time from emission to reception of the signals is proportional to the level in the vessel. This sensor is always mounted at the top.

Features and Benefits

Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time
ECHOFOX signal processing with Fuzzy-Logic
Adjustment with PLICSOM, HART handheld or PC (not supplied) Protection: IP66/IP67, cable entry M20 x 1.5, without plug connection
Measurement is independent to density, opacity, conductivity or dielectric constant of liquid
Accuracy better than 0.2% or ±10mm
Non-contact measurement
Unaffected by product properties
Adjustment without a medium

Applications

Level measurement of liquids and for use in small bulk solids vessels
Suitable for the measurement of liquids and solids in virtually all industries, particularly in the water and waste water sector

Certifications

ATEX II 1G, 1/2G
2G EEx ia IIC T6
IP66 rated
IP67 rated
