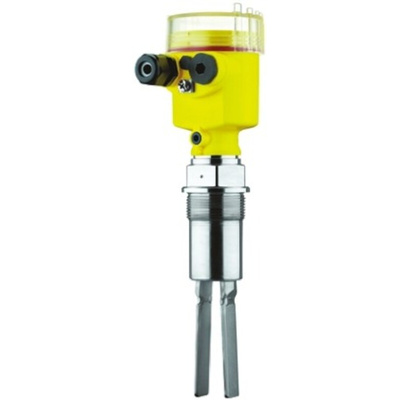

WAVES61.EEJ2RA, Vega VEGAWAVE 61 Series Vibrating Level Switch Vibrating Level Switch, Relay Output, Cable, ATEX-Rated

Vega Vibrating Level Switch

The Vega vibrating level switch has a relay (DPDT) output. It is energized by a piezo crystal and it vibrates at a fixed amplitude. If the vibrating rod is covered by the product, the amplitude change is detected by the integral electronics and converted into a switch signal. The switching condition is visible from outside via a two-colour LED. Vibrating Liquid/Solid Level Probes - Squings.
All of these probes are maintenance-free and have an external LED switch status indication.

Features and Benefits

The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC
Process fitting material is thread G1 PN25, DIN3852-A

Easy setup without adjustment
Product-independent switching point
Rugged sensor construction
Insensitive to build-up and statically charged products
Solid densities from 8g/l reliably detected
maintenance-free and does not wear out easily
External LED switch
Housing material PBT (plastic)
Density is greater than 100g/l
Breaking capacity maximum 750VA, 54W

Applications

Typical applications are overfill and low-level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides
Almost all the bulk solids applications

Certifications

IP66 rated
IP67 rated
ATEX II 1/3 D IP6X T
