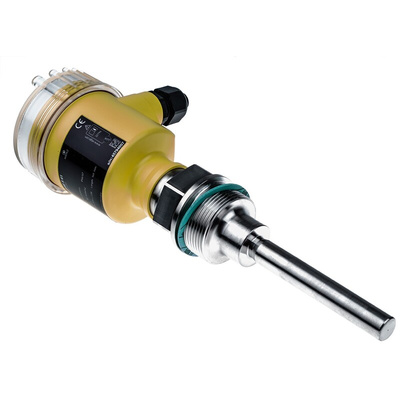

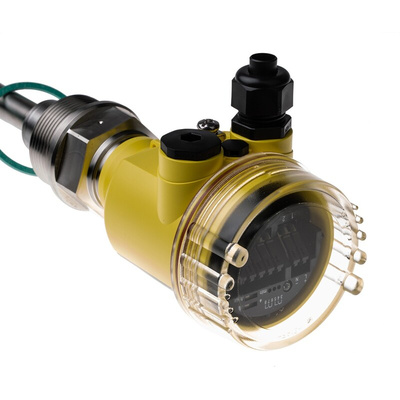

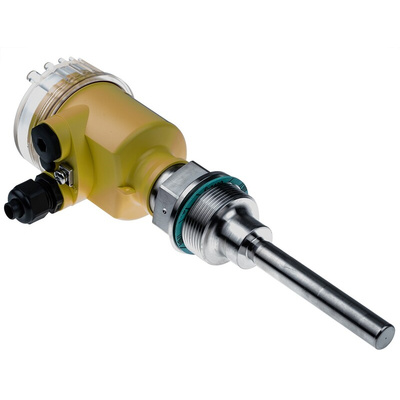

VIBS61.EXX2RA, Vega VEGAVIB 61 Series Sensor Level Probe, Relay Output, Cable

Vega Vibrating Level Switch

The Vega vibrating rod level switch has a relay (DPDT), contactless electronic switch andtwo-wire output. Due to its design, jamming and build-up of bulk solid material is avoided. This switch is suitable as a high or low-level switch in vessels detecting foodstuffs, perishable or granulate materials, which can cause problems when retained in fork solids level probes. It has low maintenance costs as well as a simple setup to save you time. Vibrating Liquid/Solid Level Probes - Squings.
All of these probes are maintenance-free and have an external LED switch status indication.

Features and Benefits

The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC

Process fitting material is thread G1 PN16, DIN3852-A
Low maintenance costs
Minimum time and cost expenditure, simple setup without a medium
Reliable function through product-independent switching point
Operating temperature ranges between 50°C and 150°C
Easy setup without adjustment
Product-independent switching point
Optimum rod design avoids build-up and jamming
Easy cleaning
maintenance-free and does not wear
Power consumption is 0.5W (maximum)

Applications

Level measurement and point level detection in the grain silo
Level measurement and point level detection in small storage containers

Certifications

IP66 rated
IP68 (0,2bar) rated
IP67 rating
IP68 (1bar) rating
ATEX II 1/3 D IP6X T

Vegavib S61 Product Details Data Sheet

Vegavib S61 Operating Instructions

Vegavib S61 Product Details Drawing

Technical Drawing
