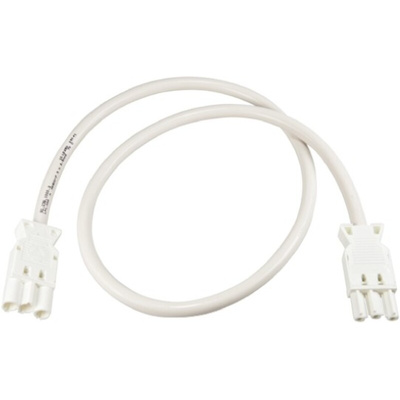

92.238.3000.2, Wieland 3m Power Cable, 3 Pole, GST18I3 to 3 Pole, GST18I3, 20 A, 250 V, Кабель

Wieland GST18i3 Series Extension and Connection Cables

A comprehensive range of Wieland GST18i3 male to female extension cables, female to free and male to free connection cables offered in white PVC or Halogen free types, with a 250v, 20A capacity in a wide variety of cable lengths to suit many power and lighting applications. The GST18i3 range of male and female extension and connection cables are a soft wiring system with 2 pole and earth, approved for use as installation couplers to: AS/NZS 61535 and compatible with the existing range of Wieland GST18 connectors.

Rated at 250V 20A
2 Pole and earth
Rated impulse voltage 4Kv
IP40 rated
Conductor cross section 2.5mm²

Wieland Power Cable

The Wieland GST18i3 power cable is male to female extension cables, female to free and male to free connection cables offered in white PVC or Halogen free types, with a 250V, 20A capacity. This cables are a soft wiring system with 2-pole and earth. The conductor cross section area is 2.5mm² and colour is black.

Features and Benefits

• A leading earth contact and an optional locking device all contribute to ensure the safest possible connections.
• Mechanical and colour coding provides for a safe and easy separation
• Rated impulse voltage 4KV

Applications

• Factory-assembled equipment
• Power and lighting

Certifications

• AS/NZS 61535
• CCC approvals
• IP40 rating
• VDE approvals

GST18 Compact Connectors

The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.

92.238.3000.2 data sheet
