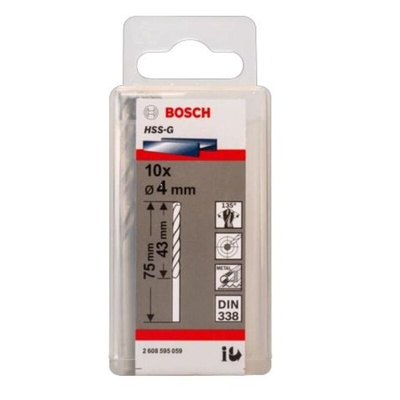

2608595059, Bosch HSS-G Twist Drill Bit, 4mm Diameter, 75 mm Overall, Сверло

Bosch HSS-G Metric Jobber Drill Bits (DIN 338)

Introducing the series of HSS-G Drill Bits from Bosch. These high-performance drill bits are designed to give a very clean, accurate holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron malleable cast iron, non-ferrous metals and hard plastic. The HSS-G drill bits enable up to 40% faster drilling rates and 50% lower feed pressure than standard HSS bits, with a chisel edge and split point drill tip manufactured to DIN338. The bit's exposed 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering, delivering maximum precision. The split-point tip also eliminates any need to pre-punch or pilot drill for up to 10 mm.

Features and Benefits:

• Features self-centring split-point for excellent positional accuracy and hole quality
• 135° point angle design for maximum accuracy of application
• No pre-punch or pilot required
• Right-hand helical drill bits type N
• Precision ground for a faster drilling rate and lower feed pressure
• Spiral helix enables rapid swarf removal
• Suitable for drilling in alloyed and non-alloyed steel up to tensile strength of 900N/m2
• Suitable for both hand and machine use

Approvals and Certification:

• DIN338
• DIN1412C Quadruple Sharpening
• Bosch Standard Quality

Typical Applications:

These bits are ideal for fast drilling of a plug, anchor or clearance holes in a number of materials such as steel, plastic, wood, metal etc. This makes it an essential piece of kit to have if you work within the carpentry/construction/engineering industries to save time and money on being able to perform more efficiently when working with stubborn materials.

FAQs:

Can these drill bits be used with any SDS drill?
No, they are standard drills, will not fit into SDS chuck

What does jobber mean?
The word jobber specifies the length of the drill bit. This generally means the length of the entire drill bit itself is significantly longer for diameter it has. As an example, a mechanic drill bit will have a much shorter flute and therefore have a much smaller overall length.

What are HSS and HSS-G?
An acronym for High-speed steel, HSS is generally the go-to type of steel needed for drill bits due to their excellent heat resistance at high speeds. The HSS-G drills bits are additionally ground at the tip and along with their flutes. HSS-G drill bits are ideal for high-performance, professional application and are ideal for drilling into an alloy and non-alloy steel, non-ferrous metals, grey cast iron and malleable iron, sintered iron.

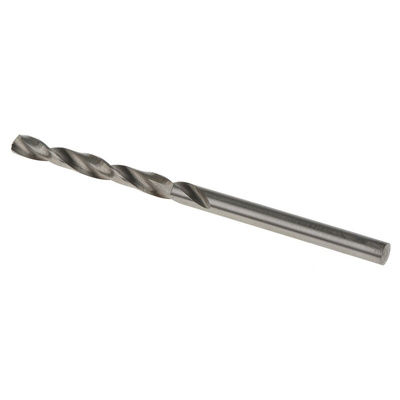

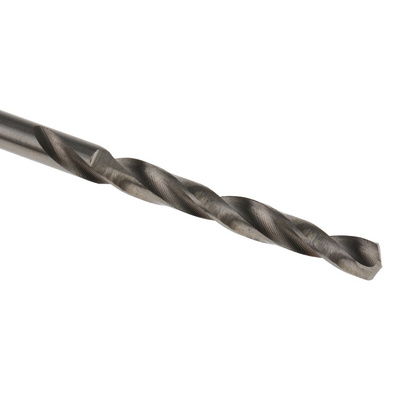

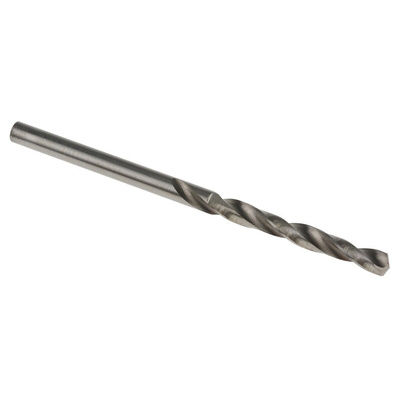

Bosch Drill Bit, HSS-G, Twist - 2608595059

This high-quality Bosch drill bit is a twist drill bit made of durable HSS-G material, with a 4mm diametre. It is designed for precision drilling applications in the automation, electronics, electrical, and mechanical industries. The drill bit features a twin design with a precision-ground tip, enabling faster drilling rates and lower feed pressure compared to standard drill bits. With its long-lasting construction and superior performance, this Bosch twist drill bit is a must-have for professional applications.

Features & Benefits

• High-speed steel construction for durability and strength
• Twist drill bit design for precise drilling operations
• 4mm diametre suitable for various applications
• Precision ground tip for up to 40% faster drilling rate
• Self-centring split point eliminates the need for pre-punching or pilot drilling
• Suitable for alloyed and non-alloyed steel, cast iron, and non-ferrous metals
• Two-cutter, cylindrical, two flutes design for efficient drilling
• Polished finish for a professional look

Applications

• Ideal for drilling in alloyed and non-alloyed steel
• Perfect for use in cast iron, sintered iron, and malleable cast iron
• Suitable for drilling in non-ferrous metals and hard plastics
• Designed for precision drilling in automation, electronics, electrical, and mechanical industries

Can it be used with different materials?

This Bosch drill bit is versatile and suitable for drilling in alloyed and non-alloyed steel, cast iron, non-ferrous metals, and hard plastics.

Will it require pre-punching or pilot drilling?

No, thanks to the self-centring split point design, there is no need for pre-punching or pilot drilling with this drill bit.

Is the 4mm diametre suitable for most applications?

Yes, the 4mm diametre makes this Bosch drill bit ideal for a wide range of drilling tasks in various industries.
