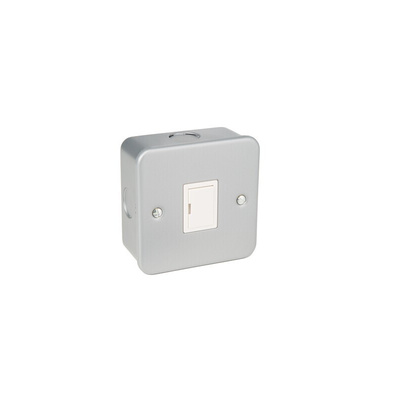

RS PRO 13A, 1 Gang Fused Spur, Выключатель

RS PRO 13 A, 1 Gang Fused Spurs

This RS PRO fused spur uses residual current protection (RCD) to isolate your electrical component from the mains supply. It has a fuse carrier that opens when the switch needs to be tripped, stopping accidental activation. Its mild steel body material is sturdy and resistant to heat generated by your electrical appliances.
The extra protection and durability of this fused spur make it ideal for industrial, commercial and workshop applications where safety is paramount. It conforms to the British Standards Authority's BS5733 certification to ensure it's safe for use.

Features and Benefits

• Current rating of 13 A
• Depth of 25.05 mm
• Dimensions of 86.5 (L) x 86.5 (W) x 25.05 (D) mm
• Earth terminal
• British Standard (BS) 1362 fuse type
• Height of 86.5 mm
• Length of 86.5 mm
• Minimum box depth of 25 mm
• Surface mounting style
• One gang
• Two poles
• Not an RCD (residual current device) type
• Voltage rating of 250 V AC
• Width of 86.5 mm

RS Pro Datasheet
