RS PRO 13A, 1 Gang Fused Spur, Выключатель

RS PRO 13 A, 1 Gang Fused Spur

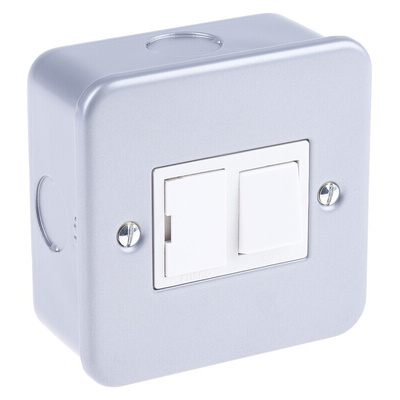

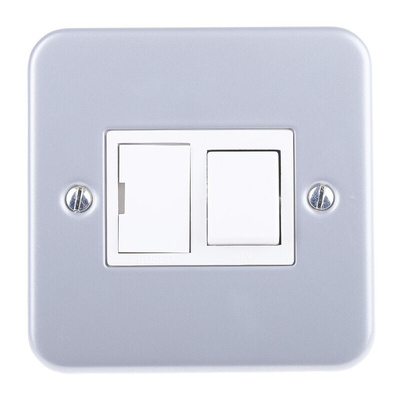

Manufactured from mild steel, this RS PRO fused connection unit provides a safe outlet that can isolate equipment from a mains power circuit. It has one socket and a durable steel body which allows it to stand up well in industrial and workshop applications.

The fused spur includes a manual switch for turning the connection on and off and can be locked open to ensure isolation from electrical current during maintenance. This provides protection from accidental exposure to electrical current. The unit is supplied with a back box.

Switched fuse spurs are also useful for electrical devices that are only used periodically, as they can completely cut current until it is needed again. The component has ASTA (Association of Short-circuit Testing Authorities) and BS (British Standards) approval for electrical safety and forms part of the RS MetalClad range, where quality manufacturing and competitive pricing unite.

Features and Benefits

• One gang fused spur with earth terminal
• Current rating of 13 A
• Fuse type of BS 1362 (British Standard Cartridge Fuse Link)

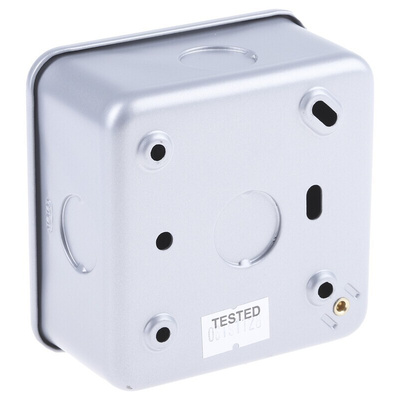

• Supplied with a back box
• Surface mount type
• Dimensions of 86.5 mm x 86.5 mm x 23.3 mm
• Minimum box depth of 25 mm
• Meets BS 5733 (British Standards safety requirements and tests for electrical accessories)
• Meets ASTA (Association of Short-circuit Testing Authorities) standards
• RoHS (Restriction of Hazardous Substances) Compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

ASTA

Standards

BS5733

Supplied with
type":"Supplied with",

Back Box

RS Pro Datasheet
