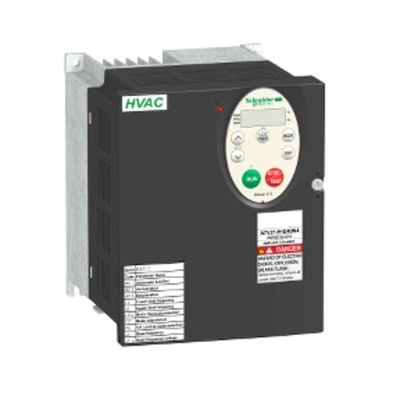

ATV212HU55N4, Schneider Electric Inverter Drive, 5.5 kW, 3 Phase, 400 V ac, 8.6 A, 10.9 A, ATV 212 Series

Altivar ATV212 Variable Frequency Drive (VFD)

The Altivar ATV212 inverter drive is a recent updated version of the earlier version ATV21 variable speed motors from Schneider Electric. This VFD drive has an output frequency control of 0.5 to 200Hz, The Altivar 212 HVAC drive has been built for performance, intelligence and protection.

Features and Benefits

• It’s important that the drive is mounted in a dust and damp proof enclosure whilst in certain environment such as dust, corrosive gases, and high humidity also around any dripping or splashing liquid. This is to protect the drive and to ensure that whilst in the enclosure the maximum internal temperature can reach 50 °C. To help encourage efficient circulation, we recommend that you fit ventilation grills and remove the blanking cover from the top of the drive. Please refer to the datasheet for more information regarding this.
• The communication service allows the user to monitor inhibitable, read device identification, read holding registers, configure a time out setting, and write multiple registers and write a single register.
• Features an integrated class C2 EMC filter.
• The Altivar is a frequency controller for a three phase, squirrel cage motor.
• Available as standard IP21 and IP55 protection
• Electrostatic discharge immunity test level 3, conforming to IEC 61000-4-2.
• Less than 35% THDi harmonics due to Innovative C-less technology
• Embedded Building management communication protocols.
• Incorporates 3 logic inputs, 2 analogue inputs, 2 logic outputs and one configurable analogue output.

Typical Applications

• Typically used in industrial and commercial applications, mainly focusing on ventilation due to the lack of airdraulic noise and motor noise.
• Smoke extraction which has a forced start with fault inhibition.
• Heating and Air conditioning, because of the optimised control in fluid processing and adjustable flow rates which improves energy management.
• Pumping, useful in this application because of the multi-motor configuration and sleep/wake function. Alongside the detection of underload/over load.

When do the cooling fans on the ATV212 VFD switch on?

The fan control strategy of the ATV212 means that the fans will start when the drive is in the “RUN” state. The fan will then stop after the “STOP” command has been given. There may be a time delay because of the thermal state.

Schneider Electric Inverter Drive, LED Indicator, 7.5Hp Motor Power - ATV 212 Series - ATV212HU55N4

Get a handle on the speed and torque of your industrial motor with this inverter drive from Schneider Electric. It regulates the activity of your machinery to give you precise control over operations. An integrated EMC filter helps reduce EMI, so you can count on noise-free signal transmission. This component works with commonly used communication protocols including METASYS N2, LonWorks, BACnet, MODBUS and APOGEE FLN, so it's easy tp integrate with your PLCs. A red LED indicator clearly shows system status for simple troubleshooting.

Features & Benefits

• Power rating of 5.5kW for use in heavy-duty applications
• Integral heatsink keeps your machinery cool, even under pressure
• IP21 rating means it's touch-proof and shielded from objects larger than 12mm, for shock-free handling and safe maintenance
• Low noise level of 51dB ensures workplace comfort

Applications

• Mining industry
• Chemical processing plants
• Lifts and escalators

How many inputs and outputs does this inverter driver have?

It has two analogue and three logic inputs, along with one configurable analogue output and two logic outputs. This allows you to customise the drive's settings to suit your application.

Approvals

CE

Standards

IEC 61800-3, EN 55011 class A group 1, IEC 61800-3, IEC 61800-5-1\n, UL Type 1\n.

Certificate No.
type":"Certificate No.",

NOM 117, CSA, C-Tick, UL
