U1273AX, Keysight Technologies U1273A Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

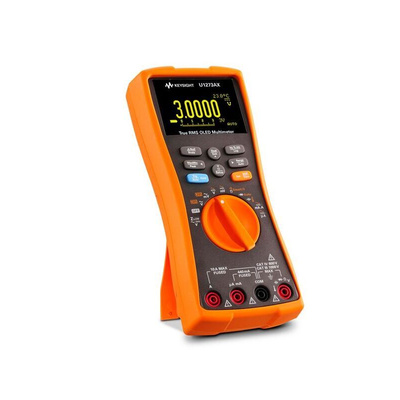

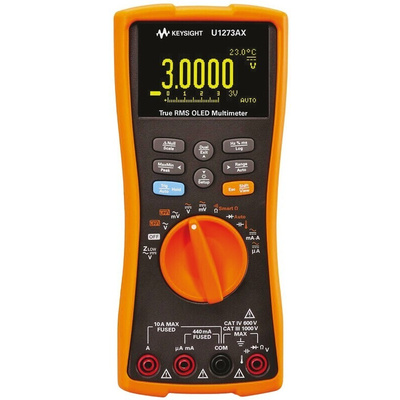

Keysight U1273AX Low Temperature OLED Digital Multimeter

The U1273AX OLED handheld digital multimeter, the latest addition to U1270 Series, is capable of operating in winter weather down to –40°C temperature. Even in frigid conditions, the U1273AX enables you to achieve immediate and accurate results without the need to warm up in advance.

30000 count resolution
Peak detect records transients as fast as 250us
Measure upto 1000V AC / DC
Low Pass Filter
Z_LOW provides both high and low impedance modes to eliminate stray voltages
OLED display with a 2000:1 contrast ratio and 160° view angle
Smart Ω removes residual voltage of upto 1000mV
Auto diode automatically determines diode polarity
Temperature measurement
Measure upto 10A (20A for 30 secs)
Supplied with 4 x AAA lithium batteries

Supplied with

Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4 x AAA lithium batteries for U1273AX, Certificate of Calibration, UK 6 (test report), Quick Start Guide.

Keysight Technologies Multimeter, OLED Display, 100kHz AC Bandwidth - U1270 Series - U1273AX

For precise measurement of electrical parameters in your workplace, choose this multimeter from Keysight Technologies. It monitors values like current, voltage and resistance and presents the data on an OLED screen that's easy to read. This multimeter is powered by four AAA lithium batteries that provide up to 100 hours of use, giving you long-lasting performance. It's also Bluetooth and USB-compatible, so you can easily transfer data to your computer or mobile device.

Features & Benefits

• Compact dimensions of 207 (H) x 92 (W) x 59mm (D) for portability
• IP54 rating means it's protected against limited amounts of dust and water splashes from all directions
• Can measure voltages up to 1000V AC/DC for use in light to medium-duty applications
• Integrated fast-acting fuse for protection against short circuits

Applications

• Consumer electronics
• Communication industry
• Domestic wiring

How much memory does this multimeter have?

This multimeter has enough memory to store up to 10,000 readings, giving you a large amount of data storage.

What's the function of the low-pass filter on this multimeter?

The low-pass filter eliminates electrical noise to give you clearer signal readings.

Keysight

Datasheet_U1273AX

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Manual

Brochure - Handheld Tools
