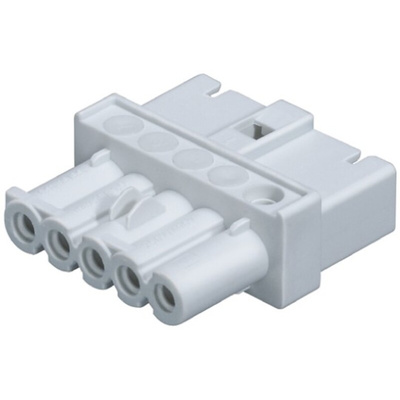

91.040.5953.0, Wieland, Gesis Male to Female 4 Pole Coupler, PCB Mount, Rated At 16A, 400 V

GST15i Mini Coupler

Wieland Gesis Mini GST15i4/5 mini couplers are ideal for lighting and other light power applications, mechanically and colour coded for ease of assembly and to prevent misconnections. These GST15i mini couplers are suited for direct routing applications from light fitting to light fitting for example.

GST15i Mini Compact Connector System

A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.

Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

91.040.5953.0 data sheet
