91.030.5253.0, Wieland GST15i3 Series Distribution Block, 3-Pole, Male to Female, 1 → 5-Way, PCB Mount, 16A, IP40

GST15i3 Mini Distribution Block

Wieland Gesis Mini GST15i3 distribution blocks are ideal for lighting and other power applications, mechanically coded for ease of assembly and to prevent misconnections. These GST15i3 series are available in a variety of output configurations and are compatible with all of the GST15i3 range of connectors and cable assemblies which gives you the ability to build complex network installations using just four basic components, plug and socket connectors, panel mount connector, distribution block and cable assemblies which are available in many lengths.

Main power supply, 3 pole, white coding
Rated at 250V, 16A

Wieland GST Connector

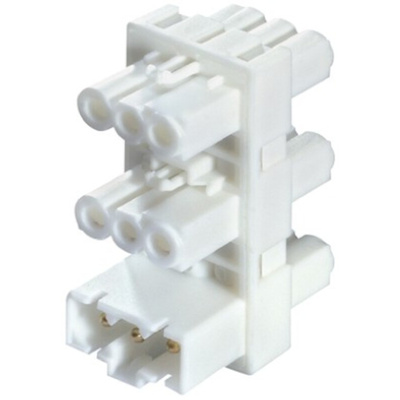

The Wieland GST connector is a GST15i3 series, male to female, 3-pole, one input 5 output distribution block, PCB mount. It has an electric rating of 16A and 250V. It gives the ability to build complex network installations using just four basic components, plug and socket connectors, panel mount connector, distribution block and cable assemblies that are available in many lengths. It can implement 2, 3, 4 or 5-pole schemes using just a small number of components.

Features and Benefits

• A pluggable electrical installation system designed for confined spaces
• Connection cycles 50 to 100 (at 16A resistive load)
• Contact material brass (plated)
• Installation material Thermoplastic (halogen free)
• Mechanically coded for ease of assembly and to prevent misconnections
• Operation temperature is 100°C

Applications

• Lighting and other power applications
• Industrial use

Certifications

• Din
• VDE 0606
• VDE 0627
• IP40 rated

GST15i Mini Compact Connector System

A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.

Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

GST15i3 pole gesis MINI distribution blocks
