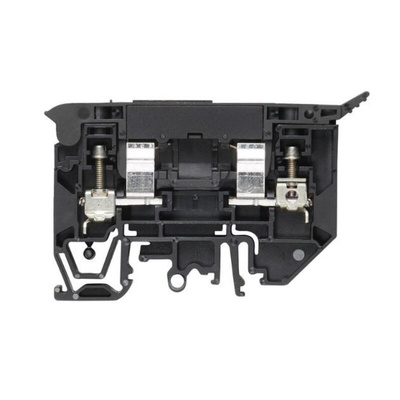

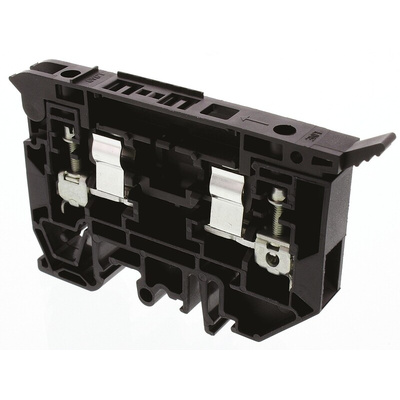

1880430000, Weidmuller W Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused

Fused Terminals

The Weidmuller ’W’ series fused terminals with standard screw clamp technology gives you short circuit and overload protection.

Note

The voltage and current ratings are to VDE ratings.
For stock number 425-263 you will need a 20 x 5mm fuse
For stock number 454-508 you will need a 32 x 6.3mm fuse

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Fused DIN Rail Terminal, 9.1mm Width, Wemid Material - W Series - 1880430000

Protect your system and users from shock with this fused DIN rail terminal from Weidmuller. It features short circuit and overload protection to stop sudden surges from damaging or disrupting your equipment. An impulse withstand voltage rating of 6kV means it's protected against powerful surges. The special Wemid thermoplastic housing is flame-retardant for safety in the event of a fire.

Features & Benefits

• Wide operating temperature range between -50°C and +120°C for use in demanding conditions
• Snap-on mounting for ease of installation
• Screw connections for secure wiring
• Small dimensions of 81.6 (H) x 9.1 (W) x 53.5mm (D) to maximise space on your DIN rail
• Light weight of 21.76g to place minimal strain on your equipment

Applications

• Telecommunications
• Energy management
• Manufacturing industry

What wire size does this component accept?

You can connect this component with wires between 30 and 10AWG in size, making it a versatile option.

What type of DIN rail is compatible with this product?

To secure this module to your system, mount it on a TS35 or a deep top hat-compatible DIN rail (467-428).

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
