1886590000, Weidmuller W Series Black Fused DIN Rail Terminal, 0.5 → 4mm², Single-Level, Screw Termination

Weidmuller Fused DIN Rail Terminal, 6.3A Current Rating, 9.1mm Pitch - W-Series - 1886590000

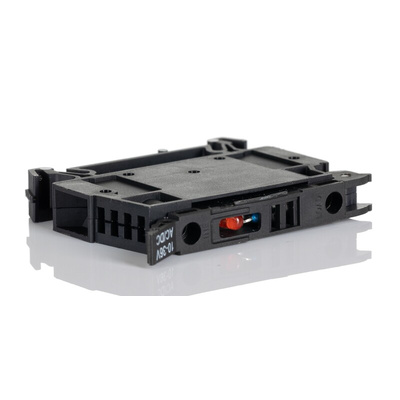

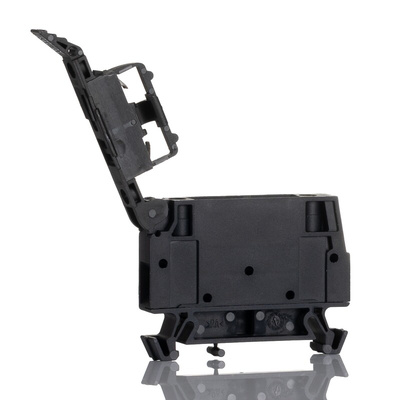

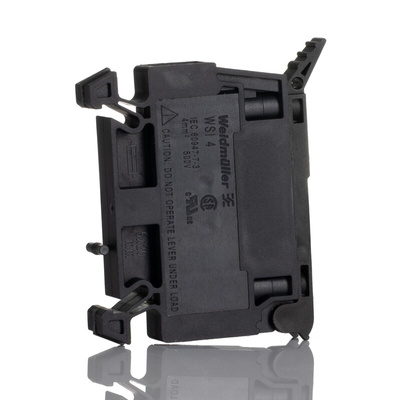

Beef up your system with protection against overcurrent and short circuits using this fused DIN rail terminal from Weidmuller. It holds a standard 5 x 20mm-sized cartridge fuse (563-699), making it a breeze to reset your equipment after a short circuit. The LED display enables effortless monitoring of the unit's power status. As it simply clips onto a DIN rail, you can mount it in a snap to get your system up and running in no time.

• Compatible with wire sizes between 30 and 12AWG to suit many different setups
• Screw connection ensures secure wiring using just a screwdriver
• Slim dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) to maximise space on your DIN rail
• Operating voltage range between 10 and 36V AC/DC for flexibility in your power supply options

Applications

• Automated systems
• Energy management
• HVAC equipment
• Transportation industry

What temperatures can this unit withstand?

This component has a broad operating temperature range between -50°C and +120°C to suit installation in even the most demanding conditions.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
