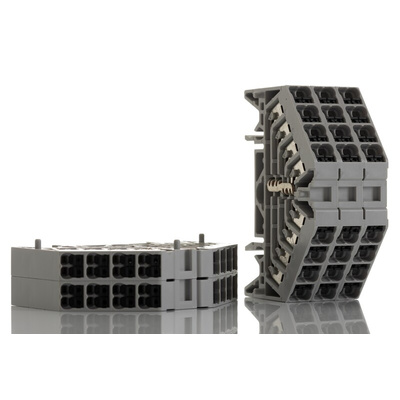

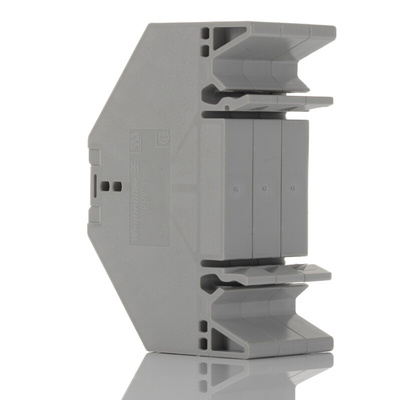

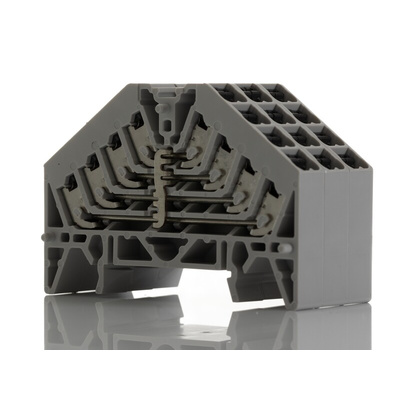

1173890000, Weidmuller P Series Grey DIN Rail Terminal Block, 1.5mm², Quadruple-Level, Push In Termination

7684677
Номер производителя: 1173890000Производитель: Weidmuller
Цена за шт. (норма упаковки 5 шт)
4258.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Weidmuller DIN Rail Terminal Block, 24 to 16AWG Wire Size Range, 17.5A Current Rating - P Series - 1173890000

Looking for a device to insulate and connect the wiring in your industrial circuitry? Put an end to your search with this DIN rail terminal block from Weidmuller. Thanks to its voltage rating of 250V, you can use it in low-power applications. To boost workplace safety, this unit self-extinguishes in 10 seconds or less in the event of a fire. Its PC construction offers resistance to impact and abrasion, giving long-term performance in tough environments. Push-in termination means your wires quickly click into place without the need for specialist tools.

Features & Benefits

• Compact dimensions of 70 (L) x 9.2 (W) x 47mm (H) to add minimal bulk to your setup
• Light weight of 21.95g to place minimal strain on your equipment
• Free from cadmium and halogen for an environmentally friendly construction

Applications

• PLCs
• Motors
• Sensors
• Transmitters

Can I use this device in harsh industrial conditions?

Yes. This component has a broad operating temperature range between -25°C and +70°C, so it's an ideal choice for use in harsh industrial conditions.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Техническая спецификация
pdfP-series Terminal PPV 4 GR 35X7.5 DGR
pdfCatalogue - Terminal Blocks
Американский размер проводов:
24 → 16AWG
Встречающиеся стандарты:
CE, RoHS
Кабель CSA:
1.5мм²
Количество уровней:
Quadruple
Концевая заделка:
Push In
Модель номер:
PPV 4 GR
Номинал тока:
17.5A
Номинальное напряжение:
250 В
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Серия:
P
Цвет:
Серый
