SP120101-04, Molex Premise Networks PowerCat Euromod II Series, RJ45/IDC

PowerCat™ Cat6 Angled Euromod II RJ45 Module Wall Plate Kits

PowerCat™ cat6 angled Euromod II RJ45 module wall plate kits for flexible data outlet installation and high-speed data transmission. The PowerCat™t Euromod II cat6a RJ45 module features a Datagate Plus cat6 RJ45 connector in a polycarbonate UL94V-0 housing. The Datagate Plus RJ45 connector has a spring loaded shutter which offers protection against contamination and also serves to eject improperly seated patch cords. The DataGate Plus RJ45 cat6 connector is dual colour coded for either 568A or 568B wiring schedules and is RJ11 compatible. This PowerCat 6 Euromod II RJ45 module has a 25 x 50mm angled fascia which reduces the bend radius of patch cords. Each of these kits contains a wall plate and the relevant number of PowerCat™ Euromod II RJ45 modules. The minimum back box depth requirement for this RJ45 module is 25mm.
Stock number 768-5260 has a 1 port single gang fascia and 1 RJ45 module
Stock number 768-5263 has a 2 port single gang fascia and 2 x RJ45 modules

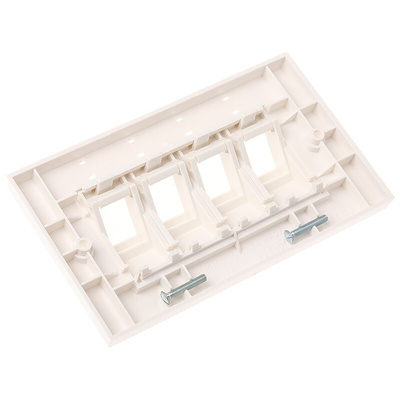

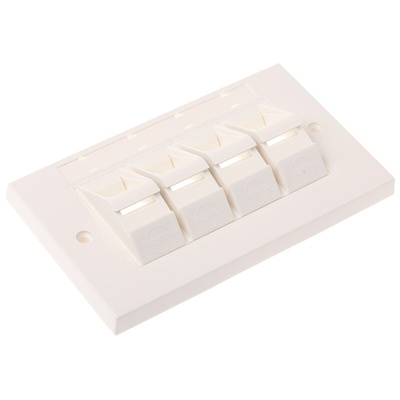

Stock number 768-5267 has a 4 port double gang fascia and 4 x RJ45 modules

Standards

TIA/EIA-568-B.2-1
FCC Subpart F 68.5
ISO 60603-7
ISO 11801:2002
EN 50173:2002

PowerCat Cat6 angled Euromod II RJ45 Module wall plate kits
