MEU-00065-02, Molex Premise Networks PowerCat Euromod II Series Female RJ45 Connector, Cat6a, STP Shield

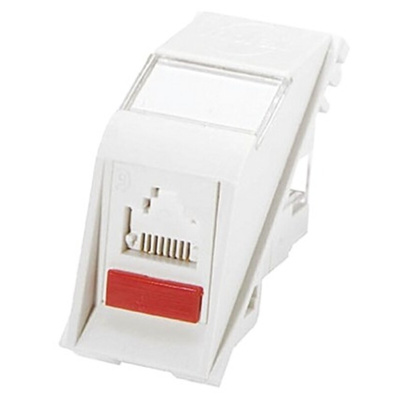

PowerCat™ Cat6a Angled Euromod III Shielded RJ45 Module

PowerCat™ cat6a shielded Euromod II RJ45 Module for flexible data outlet installation. This PowerCat™ Euromod II cat6a RJ45 Module features a shuttered 360° die-cast shielded DataGate™ cat6a RJ45 connector which offers alien crosstalk suppression, insertion loss and provides enhanced (EMI) protection. The spring loaded shutter of the DataGate™ RJ45 connector protects against contamination and also serves to eject improperly seated patch cords. The DataGate™ connector is dual colour coded for either 568A or 568B wiring schedules and is backwards compatible with shielded cat6 and cat5e systems. This PowerCat™ Euromod II cat6a RJ45 Module has a white plastic 25 x 50mm angled fascia which reduces the bend radius of patch cords and is compatible with the Euromod range of wall plates (see stock number 197-968 typically). The minimum back box depth requirement for this RJ45 module is 44mm.

Note

Category 6A performance when installed as a complete PowerCat™ cat6a shielded system.

Standards

TIA/EIA-568-B.2-10
ISO/IEC 11801 A1.1
FCC Subpart F 68.5
IEC-603-7

PowerCat Cat6a Shielded Euromod II RJ45 Module
