SRN4315K SR2-SRN4315K, ABB SR2 Monobloc Series Steel Wall Box, IP65, 400 mm x 300 mm x 150mm, Настенный шкаф

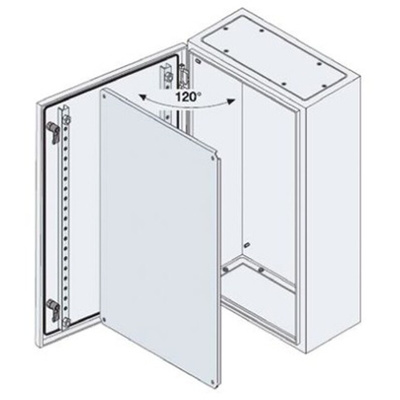

ABB Steel Wall Box, IP65, 300 (W) x 400 (H) x 150mm (D) - SR2 Monobloc Series - SRN4315K SR2-SRN4315K

Keep your sensitive components protected in this steel wall box from ABB. Its IP65 rating indicates it's dust-tight and resists low-pressure water jets, making it ideal for harsh industrial settings. The unit's galvanised steel walls are corrosion-resistant to ensure a long service life, even in damp conditions. Coated with a UV-resistant treatment, the box won't crack under direct sunlight which makes it ideal for outdoor applications. The door locks with a key to prevent tampering from disrupting your system.

Features & Benefits

• Mounts directly to a wall for hassle-free installation
• Blind door prevents unauthorised individuals seeing inside
• IK10 rating indicates a high resistance to shocks up to 20J for reliable protection even in heavy-duty applications
• Two cable entry flanges on the box's top and bottom for flexibility in your wiring setups

Applications

• Switchboards
• Charging stations
• Computing enclosures
• Control and automation industry

Is the door on this wall box reversible?

As the box has cable flanges on both its top and bottom, you can reverse the door simply by flipping the unit before mounting without any loss of functionality.

SR2 Enclosures Data Sheet

Datasheet - SRN4315K SR2-SRN4315K

Instruction Sheet - SRN4315K SR2-SRN4315K
