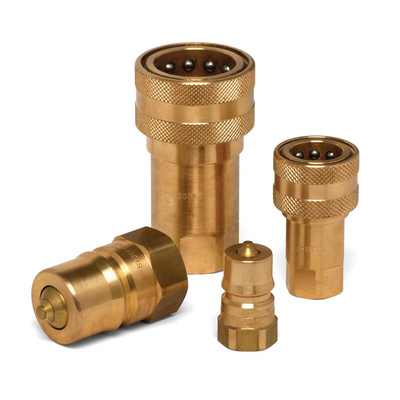

RS PRO Brass Female Hydraulic Quick Connect Coupling, BSP 1/4 Female, Муфта

RS PRO Brass Female Hydraulic Quick Connect Coupling, BSP 1/4 Female

This quick-connect coupling from RS PRO allows easy connections to and disconnections from hydraulic systems by pulling on the quick-release collar. The barrel of the connector is fitted with ball bearings to allow the plug to rotate inside the socket, ensuring the attached hoses are not damaged by twisting. The rear of the connector has a standard 1/4 inch thread so you can attach your existing hoses.
The connector supports a high range of temperatures and pressures, making it ideal for industrial applications. The coupler contains a built-in valve to prevent leakage of hydraulic fluids when not in use. Please ensure that the system is depressurised and has cooled to ambient temperature before connecting or disconnecting the couplings. These connectors are fully compatible with ISO (International Organization for Standardization) 7241 standards, allowing you to use them with your existing equipment without needing any adaptors.

Features and Benefits

• Compatible with ISO (International Organization for Standardization) 7241-1-B
• Female coupling gender
• Ball-lock locking style
• Brass material
• Maximum operating pressure of 200 bar
• Operating temperature range of -15°C to +180°C
• FMK (a fluorocarbon-based fluoroelastomer) seal material
• 1/4 in female thread
• Thread standard is BSP (British Standard Pipe)
• Union type
