RS PRO Brass Female Hydraulic Quick Connect Coupling, BSP 1/2 Female, Муфта

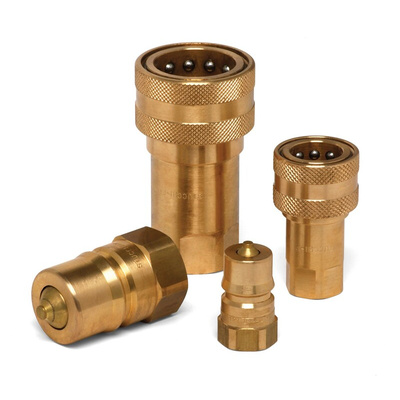

RS PRO Brass Female Hydraulic Quick Connect Coupling 1/2 in

Robust and secure, this hydraulic quick-connect female coupling is ideal for high-pressure operations. It provides a fast and convenient way to repeatedly connect and disconnect hydraulic fluid lines.

Made from brass, this product is strong, durable and corrosion-resistant. It has a Viton® rubber seal that performs well, even when subjected to temperature extremes and harsh chemicals. You can use this quick-connect coupling in temperatures ranging from -15°C to +180°C. Featuring a poppet valve and mechanically locking balls, it creates a tight connection with lower frictional properties for long service life. To connect or disconnect this coupling, you simply pull back on the outer sleeve.

The hydraulic quick-connect coupling has been stringently tested to meet RS PRO's quality standards. It's an International Standards Organisation (ISO) B coupling that's fully interchangeable with ISO 7241-1 series B products. You'll find it used with cylinders, pumps and manifolds.

Features and Benefits

• Brass hydraulic quick-connect couplings
• British Standard Pipe (BSP) 1/2 in female thread
• Union type
• Viton® fluoroelastomer seal
• Operating temperature range of -15°C to +180°C
• 160 bar maximum operating pressure
• Compatible with International Standards Organisation (ISO) 7241-1-B products
• Ball locking

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
