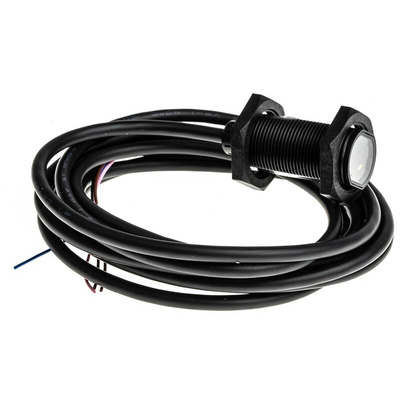

E3FARP112M, Omron Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range, Фотоэлектрический датчик

E3FA Compact Photoelectric Sensors

The E3FA range of compact photoelectric sensors from Omron are simple and quick to mount and easy to set up due to the large adjuster and high power LED indicator making alignment easier. The status LED indicators of these photoelectric sensors can also be seen easily, from long distances and wide angles. The E3FA series sensors are typically installed in industrial plants such as food and beverage, textiles, food and logistics and are also designed especially for non stop detection for areas where machines never stop.

Cylindrical straight type
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication

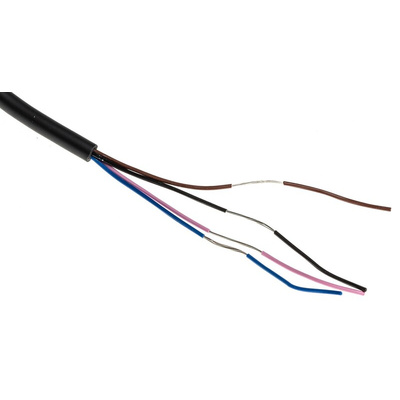

Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection

Omron E3F Photoelectric Sensor, Barrel Sensor, Retroreflective Detection Type - E3FARP112M

This is a high-quality photoelectric sensor designed for various industrial applications. This retro-reflective light sensor operates in either Light ON or Dark ON mode, providing accurate and reliable detection of objects.

Features & Benefits

• The sensor utilises retro-reflective technology with a Modulated Scatter Reflective (M.S.R.) function, ensuring reliable object detection
• When using the E39-R1S, the sensing distance ranges from 0.1 to 4 metres
• The sensor can be configured to operate in either Light ON or Dark ON mode based on your application requirements
• The sensor features a PNP open collector output with a maximum voltage of 30 VDC and a maximum current of 100 mA
• The operate or reset time is a swift 0.5 ms maximum
• It operates reliably in temperatures ranging from -25°C to 55°C (with no freezing or condensation)

Applications

• Detecting objects on conveyor belts
• Ensuring proper packaging alignment and presence
• Verifying component placement and assembly
• Detecting objects in warehouses and logistics centres

What is the sensing distance of the E3FARP112M sensor?

When using the E39-R1S, the sensing distance ranges from 0.1 to 4 metres.

Can I choose between Light ON and Dark ON operation?

Yes, the E3FARP112M sensor is Light-ON/Dark-ON selectable, allowing you to configure it based on your specific application needs.

Is the sensor suitable for harsh environments?

Yes, the rugged housing design ensures durability even in high-pressure and high-temperature washdown conditions (IP67, IP69K ingress protection).

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
