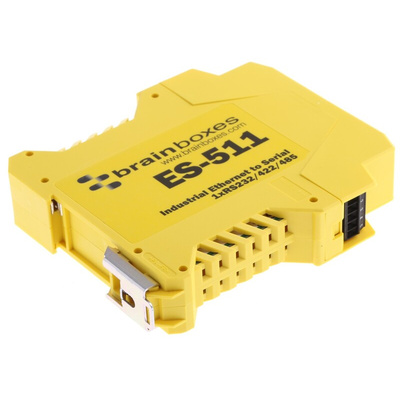

Brainboxes ES-511

Brainboxes Interface Converter

The Brainboxes interface converter is an Ethernet to the serial device has a 1-port software selectable as RS232, RS422/485 Full duplex or RS422 half-duplex. It has removable screw terminals blocks for easy wiring. This device provides simple instant networked serial ports in demanding environments. The serial port tunnelling allows serial cable replacement over any distance. It also has a web interface, which allows secure configuration and control of the serial ports over a local network or the internet using any browser.

Features and Benefits

Integrated DIN rail mount and slim case
Operating temperature ranges between -30°C and 80°C
Non-conducting polyamide enclosure
LED status indication
Wide range input power supply ranges between 5VDC and 30VDC
Redundant dual power input
Grounds on every fifth pin
Functional earth via integral DIN rail mount
Brainboxes state of the art auto gating for trouble-free RS485 half-duplex flow control
Maximum baud rate is 1,000,000 (1MBaud) and custom baud rates
10/100Base TX Ethernet port
Recognises straight and crossover Ethernet cables and works with either
User-friendly interface, simple to use and powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users

Applications

Remote monitoring
Industrial sites
