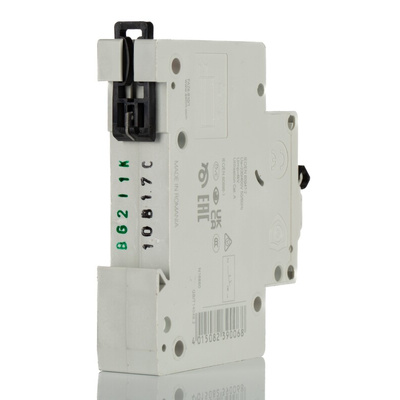

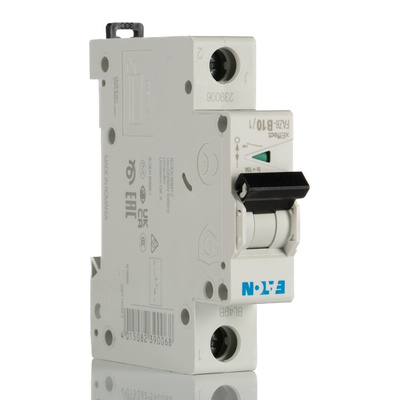

239006 FAZ6-B10/1, Eaton xEffect MCB, 1P, 10A Curve B, 230 → 400V AC, 6 kA Breaking Capacity

Type B MCB

An updated version of the PLS6 MCB but now certified to IEC / EN 60898 standard

Eaton Single-Pole MCB, 10A Current Rating, 6kA Breaking Capacity - FAZ6 Series - 239006 FAZ6-B10/1

Protect your circuit from electrical damage with this MCB from Eaton. Thanks to a voltage rating of 230 to 400V, you can safely install it in both domestic and industrial environments. As this is a type B breaker, it trips when the supply current is 3 to 5 times the 10A full-load current of the circuit, so it's suitable for use in applications with low or non-existent switching surges. A broad operating temperature range of -40°C to +75°C makes this MCB suitable for use in harsh environments.

• DIN rail mounting style means it's easy to install
• Breaking capacity (at maximum voltage rating) of 6kA for safe and reliable use
• IP20 rating means it's touch-proof and shielded from objects larger than 12mm
• Compact dimensions of 80 (L) x 17.5 (W) x 62mm (D) for installation in tight enclosures
• Low weight of 0.12kg for ease of handling during installation

What's the operational life cycle of this MCB?

This MCB has an operational lifespan of over 10,000 cycles so you can depend on it to last a long time.

Note

Eaton formerly known as Moeller

FAZ MCB's

Eaton FAZ and FAZ6 Mini Circuit Breakers - Technical Guide

Datasheet - 239006 FAZ6-B10/1
