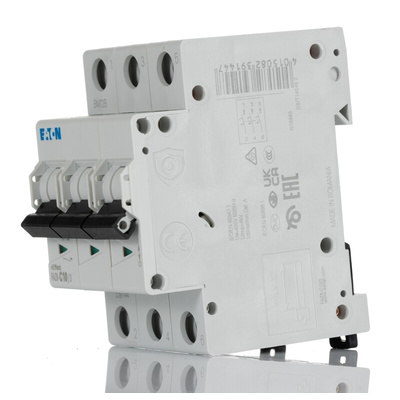

239144 FAZ6-C10/3, Eaton xEffect MCB, 3P, 10A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

Eaton MCB, IP20 Rating, Type-C Tripping Characteristics - xEffect Series - 239144 FAZ6-C10/3

Shut down overload currents in a flash with this MCB from Eaton. Its thermal-magnetic tripping mechanism interrupts short circuits to protect downstream equipment from dangerous loads. You can use it to manage multiple circuits at once thanks to its three-pole design. As a type-C breaker, it reacts instantly when it receives five to ten times its rated current of 10A. This makes it well-suited to working with powerful electrical devices such as electrical distribution boards, heavy machinery and lighting installations.

Features & Benefits

• Rated breaking capacity of 6kA to manage high inrush currents
• Operating temperature range between -25°C and +75°C for compatibility with challenging conditions
• Compact dimensions of 73 (H) x 53.1 (W) x 85mm (D) use up minimal space
• Light weight of 360g won't put a strain on your system
• IP20 rating means it's touch-proof and protected from objects over 12mm

Where should I mount this MCB?

The unit clips right onto a standard 35mm DIN rail, so mounting is fast, easy and tool-free.

What is the device's rated AC voltage?

The MCB stands up to heavy loads, thanks to a rated voltage range between 230V and 400V AC.

Note

Eaton formerly known as Moeller
