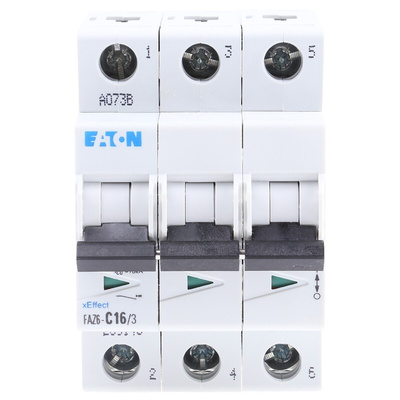

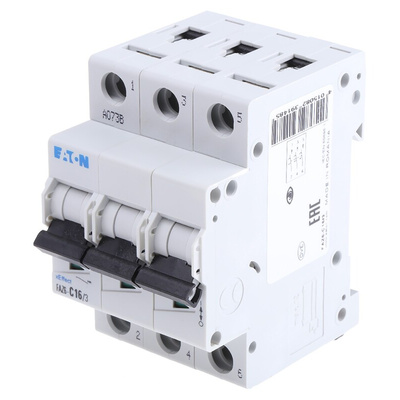

239148 FAZ6-C16/3, Eaton xEffect MCB, 3P, 16A Curve C, 230 → 400V AC, 6 kA Breaking Capacity, Автоматический выключатель

Eaton MCB, Type-C Tripping, DIN Rail Mounting - xEffect Series - 239148 FAZ6-C16/3

When it comes to electrical faults and abnormal currents, this MCB from Eaton puts your mind at ease. You can use it to shield your three-phase equipment from damage caused by short circuits or overloads. It also helps keep you safe from electric shocks. Type-C tripping characteristics mean the unit steps in to break the circuit when it receives between 5 and 10 times its rated current of 16A. This breaker is a reliable layer of protection against high-power surges in devices such as small electric motors and fluorescent lighting.

Features & Benefits

• Compact dimensions of 80 (L) x 17.5 (W) x 62mm (D) save space in your installation
• DIN rail mounting helps you build an organised system
• Breaking capacity of 6kA at maximum rated voltage gives you protection against high-power surges
• Voltage rating of 240V AC makes it suitable for use with the UK mains supply

What type of tripping mechanism does this MCB use?

This MCB uses a thermal-magnetic tripping mechanism to provide a double layer of protection. The magnetic trip means it reacts quickly to short circuits. A bimetal strip acts as a thermal trip by heating up, bending and breaking the circuit when it encounters overload or overcurrent.

Note

Eaton formerly known as Moeller

FAZ MCB's

Eaton FAZ and FAZ6 Mini Circuit Breakers - Technical Guide

Brochure - Maximum Cable Lengths

Datasheet - 239148 FAZ6-C16/3

Instruction Sheet - MCBs, RCDs Series
