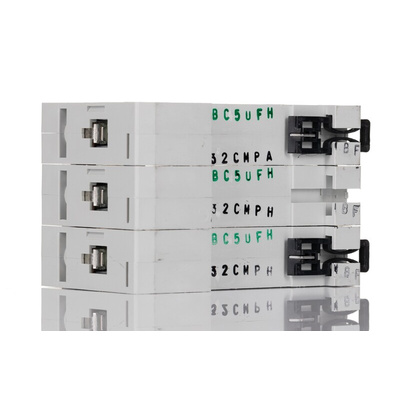

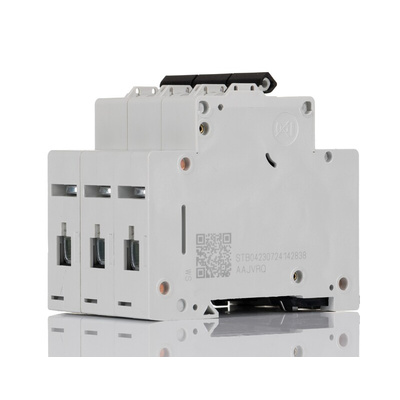

239151 FAZ6-C32/3, Eaton xEffect MCB, 3P, 32A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

Eaton MCB, 440V Rated Insulation Voltage, Type-C Tripping - xEffect FAZ6 Series - 239151 FAZ6-C32/3

Searching for an efficient way to protect electrical equipment from current overload? You can count on this MCB from Eaton to stop short circuits in a snap. It blocks damage-causing electrical surges that could damage downstream devices, making it an essential bit of kit for use with electrical distribution boards and computer networks. As it has an IP20 rating, the unit is finger-proof and safe to handle. Type-C characteristics mean this breaker trips at five to ten times the rated current of 32A, making it a top choice for commercial lighting and machinery.

Features & Benefits

• Front-facing toggle switch gives clear visual confirmation of the contact position
• Clip-on mounting directly onto a standard DIN rail for easy installation
• Stands up to heavy loads, thanks to a rated AC voltage between 230 and 400V AC

What size is this MCB?

The unit is made to fit into crowded cabinets thanks to its compact dimensions of just 85 (L) x 53.1 (W) x 73mm (D).

What conditions can I use this device in?

It performs reliably under harsh conditions with a broad operating temperature range between -25°C and +75°C.

Note

Eaton formerly known as Moeller
