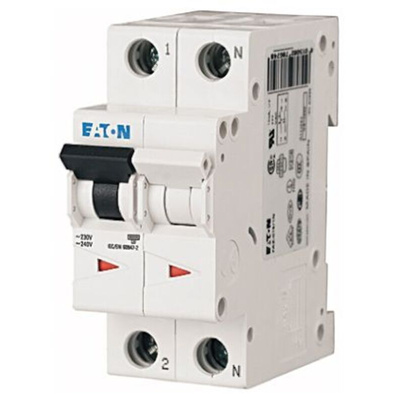

239059 FAZ6-C6/1N, Eaton xEffect MCB, 2P, 6A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

Eaton MCB, 1 Pole Plus Neutral, 6kA Breaking Capacity - xEffect Series - 239059 FAZ6-C6/1N

Keep people and machines safe by installing this MCB from Eaton. Its voltage rating ranges between 230 and 400V AC and it has a type C tripping characteristic, making it suitable for use on branched circuits powering motors and lights. A quick break time when short circuits are detected and thermal-magnetic overcurrent protections minimise the damage caused by electrical faults. This MCB accepts power feeds from the line or load side for installation flexibility.

Features & Benefits

• For safety, recessed screw terminals can't be touched by fingers or the back of the hand
• Comes with toggle switches, status indicators and labelled terminals for intuitive use
• Fits onto standard-sized DIN rails with a rear clip for quick connection and disconnection
• Toggles can't be held in position to override mechanisms, increasing safety during operation
• Long lifespan of 10,000 operations for durability

What are the dimensions of this MCB?

The modular-style MCB has dimensions of 80 (length) x 17.5 (width) x 62mm (depth). This compact size makes it easier to add to existing safety systems or fit alongside additional units such as auxiliary contacts and shunt trips.

Note

Eaton formerly known as Moeller
