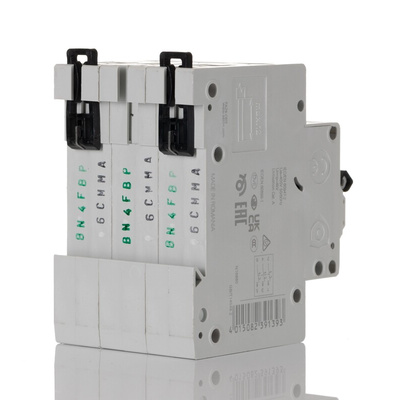

239139 FAZ6-C6/3, Eaton xEffect MCB, 3P, 6A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

Eaton MCB, 360g Weight, IP20 Rating - xEffect Series - 239139 FAZ6-C6/3

Shore up your circuitry and boost safety with this MCB from Eaton. It protects electrical equipment by shutting down short circuits and current overloads using a thermal-magnetic tripping mechanism. The unit has type-C characteristics, meaning it trips instantly when it receives five to ten times its 6A rated current. With a breaking capacity of 6kA and rated voltage between 230 and 400V AC, it's primed to take on heavy loads. You can use it to manage distribution boards, smart lighting controls and small motors.

Features & Benefits

• Finger-safe design is IP20-rated to indicate protection against objects over 12mm, like small tools and fixings
• 3 poles to manage multiple circuits at once
• Weighs just 360g to put minimal strain on your equipment
• Easy to monitor the contact position thanks to the front-facing toggle switch
• Clips onto a standard 35mm DIN rail for fuss-free installation

What conditions can I use this MCB in?

The unit performs reliably in challenging conditions as it has a broad operating temperature range between -25°C and +75°C.

What size is this module?

The circuit breaker saves space in limited setups with its dimensions of 85 (L) x 73 (H) x 53.1mm (W).

Note

Eaton formerly known as Moeller
