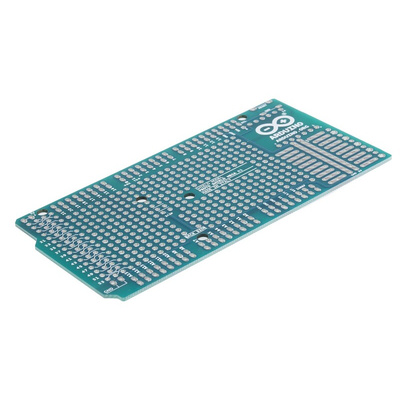

A000080, Arduino, Mega Proto Shield Rev3 (PCB)

Arduino Proto shield extension MEGA Rev3

The Arduino prototyping shield makes it easy for you to design custom circuits for the MEGA standard Arduino pinout. It has three proto shields which are assembled, unassembled and Arduino mega. This board is used to create a project by soldering the parts to the prototyping area or a small solderless breadboard is used to test the circuit. The Mega Proto Shield Rev3 (PCB) comes with extra connections for all the Arduino I/O pins and provides space to mount through-hole and surface mounts integrated circuits. The Arduino. org shields are boards that can be plugged on top of the Arduino PCB, extending its capabilities. The different shields follow the same philosophy as the original toolkit. These Arduino Shields are easy to mount.

Features and Benefits

Connections for all Arduino I/O pins
Space for through-hole and surface mount ICS
Components can be soldered to the shield
1 Reset button
1 ICSP connector
Proto Area with multiple THT pads, 100 mils pitch

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Proto Shield Extension Data Sheet
