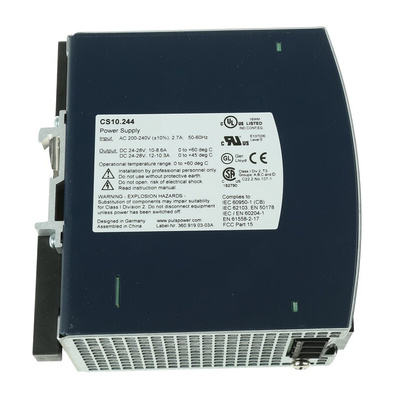

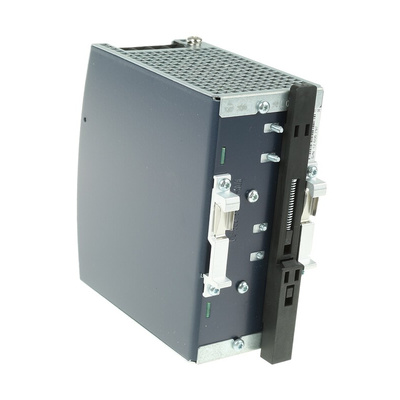

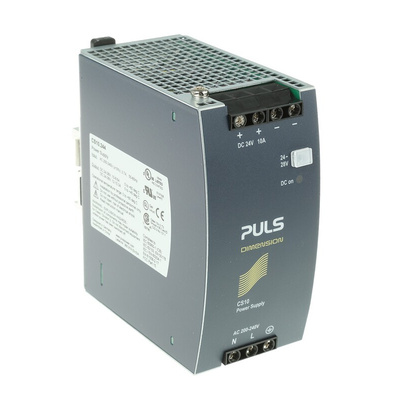

PULS DIN Rail Power Supply
The PULS DIMENSION C-Line series single-phase DIN-rail switch-mode power supply has an output voltage of 24VDC at 10A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. The single-phase input voltage rating ranging between 200VAC and 240VAC. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission.
Note:
Power de-rating between 60°C and 70°C
Features and Benefits
Slim design
20% output power reserves up to 45°C continuously allowed
Wide range auto select input
High efficiency is up to 91.3%
Power rating is 240W
Ripple factor and noise is less than 50mVpp
DC-ok LED
Minimal inrush current surge
Easy fuse breaking due to high overload peak current
Large screw terminals
Operation temperature ranges between 0°C and 70°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Certifications
IEC
UL approved
EN
SELV
EAC
GL
CE certified
