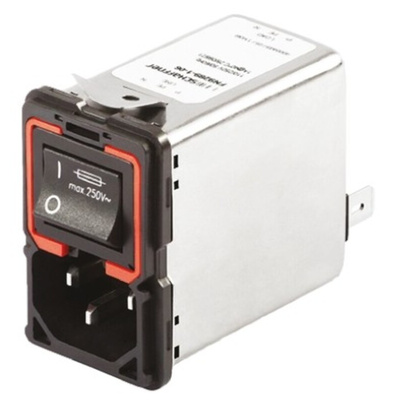

Schaffner 10A, 250 V ac Male Panel Mount IEC Filter 2 Pole FN9289-10-06, Solder, Spade 2 Fuse, Фильтр

FN9280 & FN9290 - IEC Inlet Filter

The FN9280 & FN9290 series ultra-compact shielded IEC inlet filters with a combined dual fuse holder and 2-pole rocker switch. The flange mounting variant is supplied with a kit to fascinate either front or rear mounting using either a horizontal or vertical mounting plate. Applications for the FN9280 & FN9290 series include: portable electrical and electronic equipment; consumer goods; EDP and office equipment; single-phase power supplies; switch-mode power supplies; test and measurement equipment

Single stage filter
Good attenuation performance
Shielded construction to give protection from magnetic fields
Compact housing incorporating a dual fuse holder and a 2-pole rocker switch
Flange version supplied with horizontal and vertical screw positioned mounting plates which can be fitted to allow front or rear mounting
Snap-in version also available
Faston terminals

Schaffner Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, dual fuse, panel power entry module with C14 connector. It has a supply voltage rating of 250VAC with a high-performance current rating of 10A. This variant is supplied with a kit to fascinate either top or bottom mounting using either a horizontal or vertical mounting plate. This filter has a built-in metal housing with an integrated power line connector with a combined dual fuse holder and 2-pole rocker switch. The operating frequency ranging between 50Hz and 400Hz.

Schaffner FN92XX & FN32X series
These high-performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.

Features and Benefits

Good attenuation performance
Shielded construction to give protection from magnetic fields
Solder and spade terminals
Maximum leakage current is 311μA
Operating temperature ranging between -25°C and 85°C

Applications

Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase power supplies and switch-mode power supplies
Test and measurement equipment

Certifications

UL approved
CSA certified
IP40 rated

Schaffner FN92XX & FN32X Series

These high performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.
