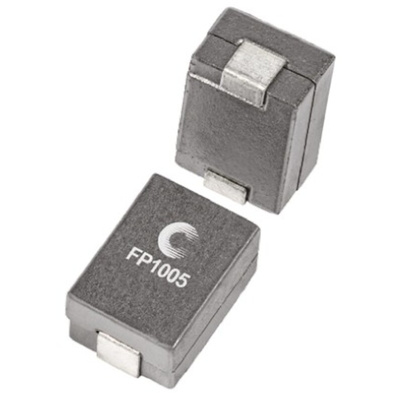

FP1005R1-R15-R, Cooper Bussmann, FP1005, 1005 Wire-wound SMD Inductor with a Ferrite Core, 108 nH ±10% Wire-Wound 47A Idc, Индуктор

FLAT-PAC™ FP1005 Series Wire Wound Chokes

FLAT-PAC™ FP1005 Series low profile high current inductors with a maximum total operating temperature of 125 °C and low core losses. The FLAT-PAC™ FP1005 Series inductors have a ferrite core and a controlled DCR tolerance for sensing circuits. Applications for FLAT-PAC™ FP1005 Series include: Multi-phase regulators; Voltage Regulator Module (VRM); Point-of-load modules; Desktop and server VRMs and EVRDs; Data networking and storage systems; Notebook regulators; Graphics cards and battery power systems; DCR sensing

Halogen free, RoHS compliant
SMD package size - 10.2 x 7.0 x 4.95 mm
Inductance range - 85nH to 220nH
Current range from 90 to 33 Amps, frequency range up to 2MHz

Cooper Bussmann Non Standard SMT Inductors (Chokes)

FLAT-PAC FP1005 Series High Current, High Frequency, Low-Profile Power Inductors Data Sheet

Transition to Bussmann Series
