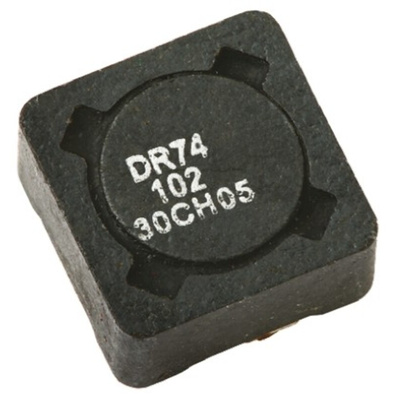

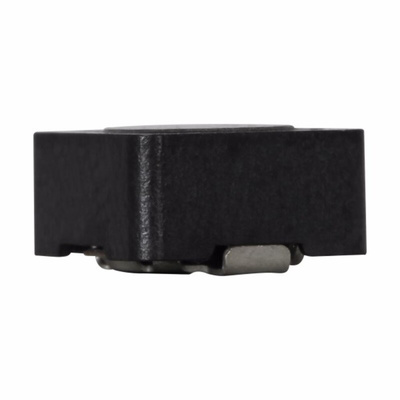

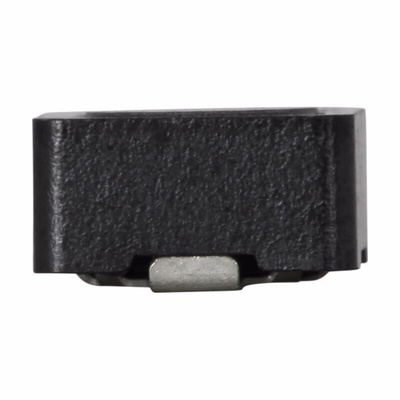

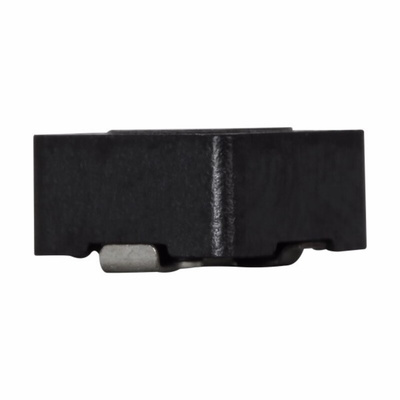

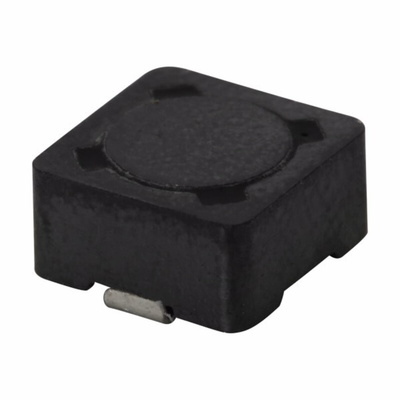

DR74-330-R, Eaton, , 0704 Shielded Wire-wound SMD Inductor with a Ferrite Core, 33 μH ±20% Wire-Wound 1.73A Idc, Индуктор

7701167
Номер производителя: DR74-330-RПроизводитель: Eaton
Цена за шт. (норма упаковки 5 шт)
265.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DR73/74/125/127 Series Magnetically Shielded Wire Wound Chokes

DR series magnetically shielded drum core inductors with a high power density and a high efficiency. The DR series inductors are designed with a ferrite core, are securely mounted and have a 125°C maximum operating temperature.

Applications for the DR series include: Computers DVD players and portable devices; LCD panels; DC-DC converters; Buck , boost, forward and resonant converters; Noise filtering and filter chokes.

Eaton Wire-Wound Surface Mount Inductor, 33μH Inductance, 7.6mm Length - DR74-330-R

Efficiently store and transfer energy in your applications using this wire-wound surface mount inductor from Eaton. It works by building up a magnetic field that allows current to flow through its wire. The unit has a ferrite core that's resistant to high currents, helping to safeguard your machinery against damage caused by faults. It's shielded to help minimise EMI, giving you reliable power transmission. Thanks to its broad operating temperature range between -40°C and +125°C, this is a suitable device for use in challenging conditions. You'll commonly find it used in applications such as LCD panels, DC-DC converters and DVD and media players.

Features & Benefits

• Compact dimensions of 7.6 (L) x 7.6 (W) x 4.35mm (H) for installation in areas where space is limited
• Supplied in a bag of five for use in multiple applications
• Maximum current rating of 1.73A to handle low-power applications

How should I mount this device?

This device is designed for surface mounting onto your PCB, which gives you a secure and vibration-proof attachment to your equipment.

Note

Eaton formerly known as Bussmann

Cooper Bussmann Non Standard SMT Inductors (Chokes)

Техническая спецификация
pdfDR Series High Power Density, High Efficiency, Shielded Inductors Data Sheet
pdfTransition to Bussmann Series
pdfSPICE Model
Высота:
4.35мм
Глубина:
7.6мм
Длина:
7.6мм
Индукция:
33 мкГн
Конструкция индуктора:
Wire-Wound
Максимальная частота собственных колебаний:
100кГц
Максимальное сопротивление постоянного тока:
143мОм
Максимальный постоянный ток:
1.73A
Основной материал:
Ferrite
Отклонение:
±20%
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-40°C
Размеры:
7.6 x 7.6 x 4.35мм
Серия:
Eaton Bussman
Упаковка/корпус:
0704
Экранированный:
Да
