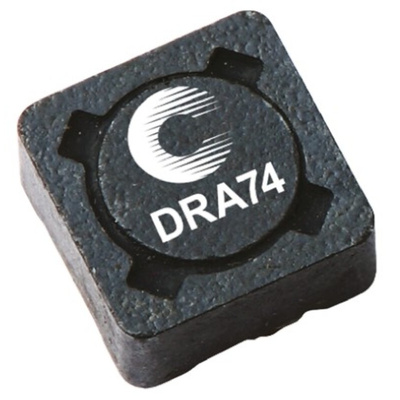

DRA74-821-R, Cooper Bussmann, DRA, 74 Shielded Wire-wound SMD Inductor with a Ferrite Core, 820 μH ±20% Wire-Wound 327mA Idc, Индуктор

DRA Series Magnetically Shielded Wire Wound Chokes

DRA series magnetically shielded drum core inductors with a high power density and a high efficiency for automotive applications. The DRA series inductors are designed with a ferrite core, are securely mounted for high shock and vibration environments. Applications for the DRA series include: Automotive Electronics (under the bonnet, interior/exterior); Telematics; DC-DC converters; Buck, boost, forward, and resonant converters; Noise filtering and filter chokes

165°C maximum operating temperature
Five sizes of automotive grade shielded drum core inductors
Good thermal dispersion with thermal conductive epoxy

Cooper Bussmann Non Standard SMT Inductors (Chokes)

DRA Series High Power Density, High Efficiency, Shielded Inductors Data Sheet

Transition to Bussmann Series

SPICE Model
