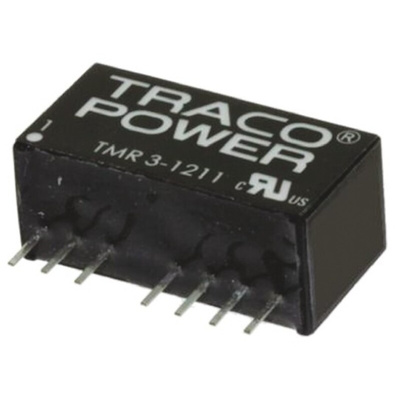

TMR 3-1211WIE, TRACOPOWER TMR 3WIE DC-DC Converter, 5V dc/ 600mA Output, 4.5 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Functional Insulation, 4.8g Weight - TMR 3WIE Series - TMR 3-1211WIE

Say goodbye to unpredictable power supply to your PCB-linked parts with this DC-DC converter from Traco Power. It takes an input between 4.5 and 18V DC and steps it down to a stabilised output voltage of 5V DC. This makes it the ideal pick for sensors and solar inverters. An internal capacitor filters out high-frequency noise and protects against EMI to deliver smooth signal quality. As this unit cools by natural convection, you don't have to install an additional heatsink or fan.

Features & Benefits

• Self-extinguishing properties, so it won't contribute to the spread of flames during a fire
• Power rating of 3W to suit light-duty applications
• Safe to use in challenging settings, thanks to an operating temperature range between -40°C and +85°C
• Plastic casing stands up to impacts and resists corrosion to ensure long-lasting performance
• Remote on/off function eliminates the need for manual operation

Applications

• Communication equipment
• Military facilities
• Medical devices
• Automotive industry

How durable is this converter?

This device has a mean time before failure of 800,000 hours, so you can rest assured it's built to last.
