TEN 40-2413WIR, TRACOPOWER TEN 40WIR DC-DC Converter, 15V dc/ 2.67A Output, 9 → 36 V dc Input, 40W, Through Hole, +85°C Max Temp, Преобразователь

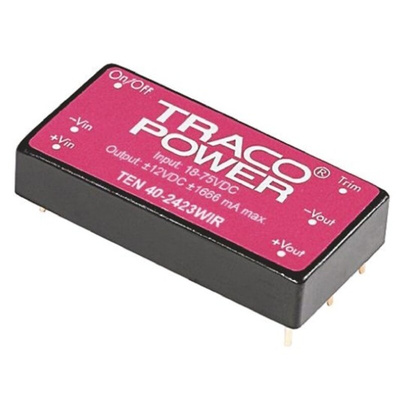

Traco 40W Single/Dual Output Regulated Isolated DC-DC Converter - TEN-40WIR Series

The Traco TEN-40WIR series is a family of 40W single/dual output DC - DC converters with a high efficiency of up to 92% and a compact footprint of only 1” x 2”. These Tracopower 40W DC - DC converters have a wide 4:1 input voltage range and a regulated output voltage. The TEN-40WIR includes On/Off remote control, over voltage protection, under voltage lockout and short circuit protection. They have a Low input current at minimal load, making them perfect for use with battery operated systems. Typical applications for these 40W DC - DC converters include wireless networks, telecom/datacom, industry control systems and measurements equipments.

1" x 2" metal package
Ultra wide 4:1 input voltage range
EN50155 approval for railway applications
Thermal shock and vibration resistant
High efficiency up to 92%
No minimum load required
Operating temperature range -40℃ to + 85℃
Under voltage lockout circuit
Remote On/Off
Output voltage adjustable
Lead free design, RoHS compliant
3 year product warranty

Standards

UL/cUL60950-1, IEC/EN60950-1, EN50155

Traco Power DC-DC Converter, Single Output, 40W Power Rating - TEN 40WIR Series - TEN 40-2413WIR

Need to keep your industrial equipment on a stable footing? Take charge with this 40W DC-DC converter from Traco Power. When supplied with 9 to 36V, it delivers a steady 15V and 2.67A output to keep your circuit running without a hiccup. The unit has a broad operating temperature range of -40°C to +85°C, so it's suitable for use in demanding conditions. A high efficiency rating of 92% means it's energy-saving too. Mount it using the through-hole method to be up and running in a jiffy.

• Compact dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (D) to save space in crowded setups
• 20V overvoltage protection for additional electrical safety
• Broad operating humidity range between 5 and 95% RH means it functions in high levels of non-condensing water vapour

Applications

• Medical equipment
• Smart lighting systems
• Automotive sector
• Renewable-energy industry

How reliable is this product?

With a mean time between failures of 900,000 hours at +25°C, this converter's reliable over long periods.

How much does this unit weigh?

This converter tips the scales at 32g, so it adds minimal weight to your PCB.
