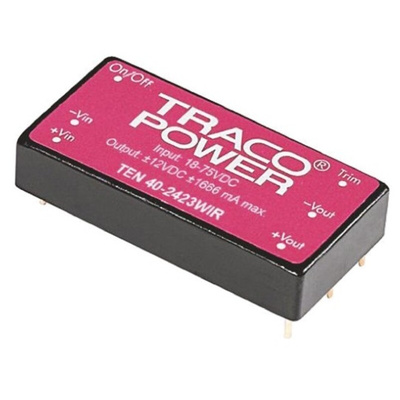

TEN 40-4815WIR, TRACOPOWER TEN 40WIR DC-DC Converter, 24V dc/ 1.67A Output, 18 → 75 V dc Input, 40W, Through Hole, +85°C Max, Преобразователь

TRACOPOWER 40W DC/DC Converter Module

TRACOPOWER TEN 40WIR series of high performance 40W dc/dc converters with a high efficiency of up to 92% and a compact footprint of only 2” x 1”. These 40W dc converter modules have a wide 4:1 input voltage range of 18 to 75 V dc and a regulated 24 V dc output voltage. The TEN-40WIR includes On/Off remote control, over voltage protection, under voltage lockout and short circuit protection. They have a Low input current at minimal load, making them perfect for use with battery operated systems.

Features and Benefits

• 50.8 x 25.4 mm metal package


• Ultra wide 4:1 input voltage range


• EN50155 approval for railway applications


• Thermal shock and vibration resistant


• High efficiency up to 92%


• No minimum load required


• Operating temperature range -40℃ to + 85℃


• Under voltage lockout circuit


• Remote On/Off


• Output voltage adjustable


• Lead free design, RoHS compliant

Applications

Typical applications for the TEN 40WIR dc to dc converters include wireless networks, telecom/datacom, industry control systems and measurements equipments.
