HCM1104-R90-R, Eaton, , 1104 Shielded Wire-wound SMD Inductor with a Composite Iron Powder Core, 900 nH ±20% Wire-Wound 22A Idc, Индуктор

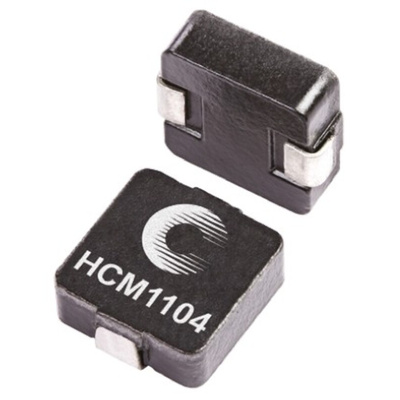

HCM1104 Series Magnetically Shielded Wire Wound Chokes

HCM1104 Series Magnetically shielded and low EMI SMD power inductors utilising a powder iron core material. The HCM1104 Series inductors design enables a high current carrying capacity, low core losses and a maximum total operating temperature of 125 °C. Applications for the HCF1104 Series include: Voltage Regulator Module (VRM); Multi-phase regulators; Point-of-load modules; Desktop and server VRMs and EVRDs; Base station equipment; Notebook regulators; Battery power systems; Graphics cards; Data networking and storage systems

Halogen free, lead free, RoHS compliant
SMD package size - 11.5 x 10.3 x 4.0mm
Inductance range - 0.2uH to 0.90uH
Current range from 45 to 28 Amps, frequency range up to 5MHz

Note

Eaton formerly known as Bussmann

Cooper Bussmann Non Standard SMT Inductors (Chokes)

HCM1104 Series High Current Power Inductors Data Sheet

Transition to Bussmann Series

SPICE Model
